Intake Air Temperature Sensor Installation

Engine. Lexus Is250, Is220D. Gse20 Ale20
2Ad-Fhv Engine Control System. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL INTAKE AIR TEMPERATURE SENSOR

Intake Air Temperature Sensor -- Installation



1. INSTALL INTAKE AIR TEMPERATURE SENSOR


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Engine Control System.Ecd System.Intake Air Temperature Sensor Installation

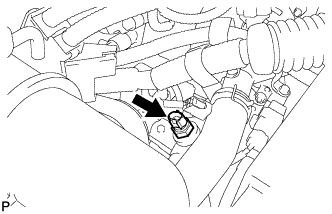

  1. Install the intake air temperature sensor.

    Torque:
    34 N*m{347 kgf*cm, 25 ft.*lbf}


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Engine Control System.Ecd System.Intake Air Temperature Sensor Installation

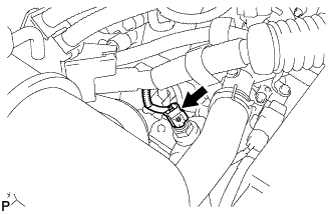

  1. Connect the intake air temperature sensor connector.
