Generator Reassembly

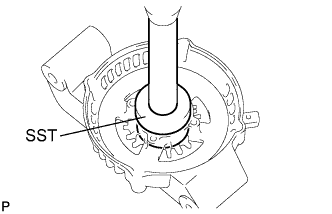

Using SST and a press, press in a new drive end frame bearing.

SST

09950-60010(09951-00470)
09950-70010(09951-07100)

Install the retainer plate with the 4 screws.

Torque:

2.3 N*m{23 kgf*cm, 20 in.*lbf}

Install the rotor to the drive end frame.

Place the washer on the rotor.

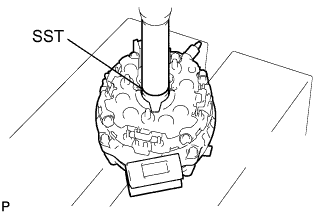

Using SST and a press, slowly press the coil assembly onto the generator rotor bearing.

SST

09285-76010

Install the coil assembly with the 4 bolts.

Torque:

5.8 N*m{59 kgf*cm, 51 in.*lbf}

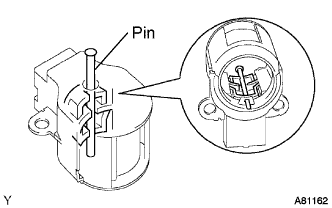

While pushing the 2 brushes into the generator brush holder assembly, insert a φ1.0 mm (0.039 in.) pin into the brush holder hole.

Install the generator brush holder assembly with the 2 screws.

Torque:

1.8 N*m{18 kgf*cm, 16 in.*lbf}

Pull out the pin from the generator brush holder assembly.

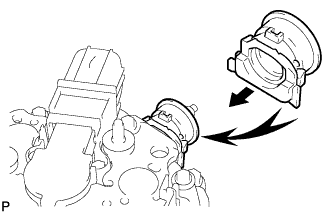

Install the terminal insulator.

NOTICE:

Be sure to install the terminal insulator as shown in the illustration.

Install the end cover with the 3 nuts.

Torque:

4.6 N*m{47 kgf*cm, 41 in.*lbf}

Temporarily install the clutch pulley onto the rotor shaft.

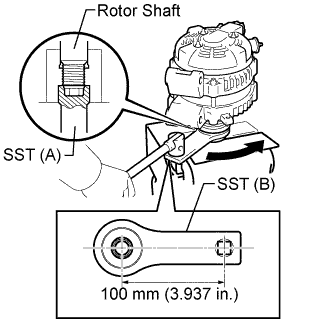

Set SST (A) and (B).

SST

09820-63020

Clamp SST (A) in a vise.

Set the generator assembly to SST.

HINT:

Make sure that the generator assembly and SST are perpendicular to one another.

Torque the pulley by turning SST (B) in the direction shown in the illustration.

Torque:

111 N*m{1,127 kgf*cm, 81 ft.*lbf}

NOTICE:

The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST (Click here).

Remove the generator assembly from SST.

Check that the clutch pulley rotates smoothly.

Install the generator pulley cap.
