Vacuum Regulating Valve Inspection

Engine. Lexus Is250, Is220D. Gse20 Ale20
2Ad-Fhv Intake. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT VACUUM REGULATING VALVE ASSEMBLY

Vacuum Regulating Valve -- Inspection



1. INSPECT VACUUM REGULATING VALVE ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Inspect the VRV for an open circuit.

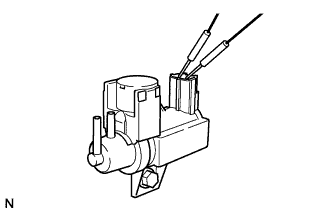

    1. Using an ohmmeter, measure the resistance between the terminals.

      Resistance:
      11.1 to 12.5 Ω at 20°C (68°F)


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Intake.Intake Air Control System.Vacuum Regulating Valve Inspection

  1. Inspect VRV operation.

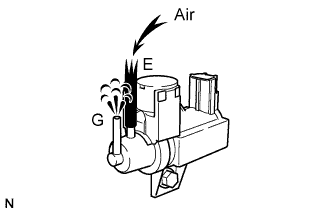

    1. Check that air flows from port E to G.



      2. Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Intake.Intake Air Control System.Vacuum Regulating Valve Inspection

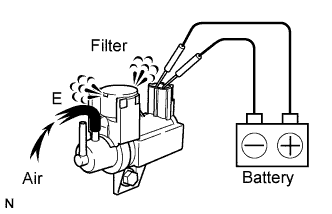

    2. Apply battery voltage across the terminals.

    3. Check that air flows from port E to the filter.
