Engine Assembly Installation

Install the engine oil level sensor and a new gasket with the 4 bolts.

Torque:

7.0 N*m{71 kgf*cm, 62 in.*lbf}

Install a new gasket and water inlet housing with the 3 nuts.

Torque:

9.0 N*m{92 kgf*cm, 80 in.*lbf}

Connect the hose.

Install a new O-ring and No. 2 water by-pass pipe with the 2 bolts.

Torque:

11 N*m{112 kgf*cm, 8 ft.*lbf}

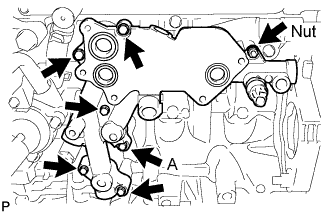

Install 3 new O-rings and oil cooler bracket with the 6 bolts and nut.

Torque:

11 N*m{112 kgf*cm, 8 ft.*lbf}

Bolt length:

Item	Length
Bolt A	36 mm (1.42 in.)
Except bolt A	49 mm (1.93 in.)

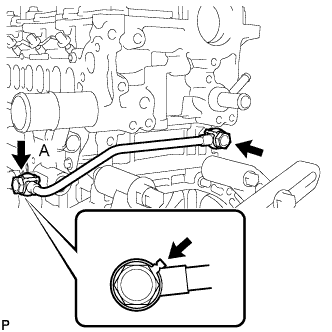

Install the No. 1 turbo oil pipe and 2 new gaskets with the 2 union bolts.

Torque:

35 N*m{357 kgf*cm, 26 ft.*lbf}

HINT:

Be sure to install union bolt A so that the gasket is positioned as shown in the illustration.

Install a new O-ring and No. 3 water by-pass pipe with the 2 bolts.

Torque:

21 N*m{214 kgf*cm, 15 ft.*lbf}

Install a new gasket and the engine coolant temperature sensor.

Torque:

20 N*m{200 kgf*cm, 14 ft.*lbf}

Install 3 new O-rings and oil cooler assembly with the 5 bolts.

Torque:

11 N*m{112 kgf*cm, 8 ft.*lbf}

Connect the oil cooler hose.

Install a new gasket and intake manifold with the 7 bolts and 2 nuts.

Torque:

23 N*m{235 kgf*cm, 17 ft.*lbf}

Install the 2 bolts and intake manifold stay.

Torque:

21 N*m{214 kgf*cm, 16 ft.*lbf}

Install a new gasket and the diesel throttle body with the 2 nuts and 2 bolts.

Torque:

21 N*m{214 kgf*cm, 16 ft.*lbf}

Install a new O-ring to the oil level gauge.

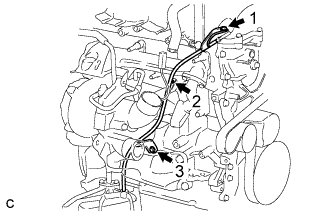

Install the oil level gauge with the 3 bolts in the sequence shown in the illustration.

Torque:

Bolt 1:

11 N*m{112 kgf*cm, 8 ft.*lbf}

Bolt 2:

20 N*m{204 kgf*cm, 15 ft.*lbf}

Bolt 3:

40 N*m{408 kgf*cm, 30 ft.*lbf}

Install the 4 glow plugs.

Torque:

12 N*m{125 kgf*cm, 9 ft.*lbf}

Install the glow plug connector with the 4 nuts.

Torque:

2.2 N*m{22 kgf*cm, 19 in.*lbf}

Install the wire harness with the nut (A).

Torque:

4.0 N*m{41 kgf*cm, 35 in.*lbf}

Install the 5 grommets.

Temporarily install the common rail assembly with the 2 bolts.

Temporarily install the 2 fuel inlet pipes.

Temporarily install the No. 1, No. 2, No. 3 and No. 4 injection pipes.

Tighten the common rail assembly with the 2 bolts.

Torque:

21 N*m{210 kgf*cm, 15 ft.*lbf}

Remove the No. 1, No. 2, No. 3 and No. 4 injection pipes.

Remove the 2 fuel inlet pipes.

Connect the pressure discharge valve connector (^*1).

Connect the fuel pressure sensor connector (^*2).

Using pliers, slide the clip to connect the fuel hose as shown in the illustration.

Install a new gasket and EGR valve assembly with the 2 bolts.

Torque:

24 N*m{245 kgf*cm, 18 ft.*lbf}

Install a new gasket.

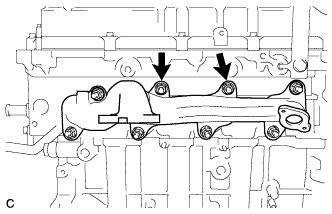

Temporarily tighten the 2 nuts and 2 collars for the exhaust manifold so that the seating surface of exhaust manifold is in touch with the cylinder head.

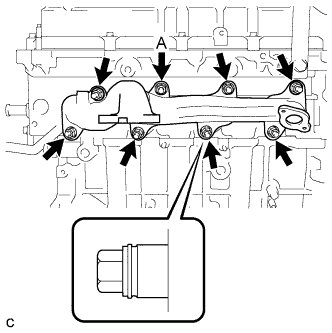

Install the exhaust manifold and the 8 collars with 8 new nuts.

Torque:

47 N*m{479 kgf*cm, 35 ft.*lbf}

HINT:

1. When installing the collars, pay attention to the mounting direction. The ring groove of the collar should face outside. Refer to the illustration on the left.

2. Tighten the nut A first.


Install the 2 bolts and exhaust manifold heat insulator.

Torque:

25 N*m{255 kgf*cm, 18 ft.*lbf}

Install the No. 1 compressor mounting bracket to the engine block.

Torque:

25 N*m{255 kgf*cm, 18 ft.*lbf}

Temporarily install the compressor assembly with pulley onto the stud bolt.

Install the compressor assembly with pulley with the 3 bolts and nut.

Torque:

25 N*m{255 kgf*cm, 18 ft.*lbf}

NOTICE:

Tighten the bolts in the order shown in the illustration to install the compressor assembly with pulley.

Install the engine mounting bracket LH with the 4 bolts.

Torque:

59 N*m{602 kgf*cm, 44 ft.*lbf}

Install the engine mounting bracket RH with the 4 bolts.

Torque:

59 N*m{602 kgf*cm, 44 ft.*lbf}

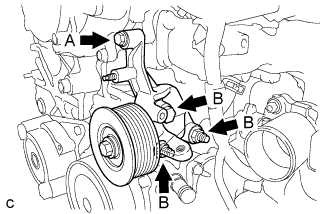

Install the tensioner assembly with the 3 bolts.

Torque:

20 N*m{204 kgf*cm, 15 ft.*lbf}

Install the idler pulley sub-assembly with the bolt.

Torque:

40 N*m{408 kgf*cm, 30 ft.*lbf}

Install the idler pulley cover plate.

Set the idler pulley bracket.

Install 4 bolts.

Torque:

Bolt A:

28 N*m{286 kgf*cm, 21 ft.*lbf}

Bolt B:

80 N*m{816 kgf*cm, 59 ft.*lbf}

Install the clamp bracket to the generator assembly with the bolt (B).

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Install the generator assembly with the 3 bolts (A).

Torque:

25 N*m{255 kgf*cm, 18 ft.*lbf}

NOTICE:

Make sure that the wire harness of the crankshaft position sensor does not get caught between the cylinder block and the generator assembly when installing the generator assembly.

Connect the clamp to the clamp bracket.

Install the wire harness to terminal B with the nut.

Torque:

9.8 N*m{100 kgf*cm, 87 in.*lbf}

Install the wire harness clamp bracket with the bolt.

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Connect the generator connector.

Install the 4 bolts and vacuum switching valve bracket.

Torque:

9.0 N*m{92 kgf*cm, 80 in.*lbf}

Install the vacuum regulating valve assembly with the 2 bolts.

Torque:

9.0 N*m{92 kgf*cm, 80 in.*lbf}

Connect the vacuum regulating valve assembly connector.

Connect the 2 vacuum hoses.

Using a hexagon socket wrench, install the No. 1 vacuum switching valve and 2 bolts (^*1).

Torque:

5.0 N*m{51 kgf*cm, 44 in.*lbf}

Connect the 2 vacuum hoses (^*2).

Connect the vacuum switching valve connector (^*3).

Install the V-ribbed belt.

While turning the belt tensioner counterclockwise, remove the bar.

NOTICE:

1. Put the backside of the V-ribbed belt on the tensioner pulley and idler No. 1 pulley.

2. Check that the V-ribbed belt is properly seated on each pulley.


After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Check to confirm that the belt has not slipped out of the grooves on the bottom of the crank pulley by hand.

After installing a new belt, run the engine for approximately 5 minutes and then recheck the tension.

If it is difficult to install the V-ribbed belt, perform the following procedure.

1. Put the V-ribbed belt on every part except the tensioner pulley as shown in the illustration.


2. While releasing the belt tension by turning the belt tensioner counterclockwise, put the V-ribbed belt on the tensioner pulley.


   NOTICE:

   1. Put the backside of the V-ribbed belt on the tensioner pulley and idler pulley.

   2. Check that the V-ribbed belt is properly seated on each pulley.


Install the engine wire to the engine assembly.

Install the front suspension crossmember sub-assembly to the engine with the 2 nuts.

Torque:

35 N*m{357 kgf*cm, 26 ft.*lbf}

Hold the crankshaft with SST.

SST

09213-58013
09330-00021

Install and tighten 8 new bolts a little at a time uniformly in the sequence shown in the illustration.

Torque:

73 N*m{741 kgf*cm, 54 ft.*lbf}

HINT:

1. Do not reuse the flywheel installation bolts.
   Be sure to check the tightening torque within 5 minutes after tightening.

2. Do not impact or damage the flywheel installation bolts. Be sure to handle them carefully.

3. Make sure that the seating surface of the flywheel installation bolts and installation surfaces of the crankshaft and flywheel are free of oil or foreign matter.


Install the starter assembly with the bolt and nut.

Torque:

64 N*m{650 kgf*cm, 47 ft.*lbf}

Connect the wire harness to terminal 30 and install the nut, and then attach the terminal cap.

Torque:

9.8 N*m{100 kgf*cm, 87 in.*lbf}

Connect the terminal 50 connector to the starter assembly.

Install the wire harness clamp bracket with the bolt.

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Connect the 2 wire harness clamps.

Set the engine lifter.

Operate the engine lifter, then install the engine to the vehicle.

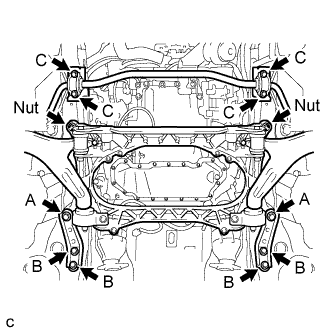

Install the engine and transmission assembly with crossmember with the 12 bolts.

Torque:

Nut:

167 N*m{1,700 kgf*cm, 123 ft.*lbf}

Torque:

Bolt A:

204 N*m{2,080 kgf*cm, 150 ft.*lbf}

Bolt B:

50 N*m{510 kgf*cm, 37 ft.*lbf}

Bolt C:

49 N*m{500 kgf*cm, 36 ft.*lbf}

Install the engine rear mounting member with the 4 bolts.

Torque:

26 N*m{265 kgf*cm, 19 ft.*lbf}

Install the power steering ground wire to the power steering link assembly with bolt (B).

Torque:

13 N*m{130 kgf*cm, 10 ft.*lbf}

Connect the wire harness connector (E) to the power steering link assembly and securely lock the connector.

Connect the 2 wire harness connectors (C) and (D) to the power steering link assembly.

Install the 2 wire harness clamps to the power steering link assembly.

Connect the earth wire to the bracket with bolt (A).

Torque:

5.0 N*m{51 kgf*cm, 44 in.*lbf}

Install the front lower ball joint with the 2 bolts.

Torque:

120 N*m{1,224 kgf*cm, 89 ft.*lbf}

Install the bolt on the lower side of the front shock absorber while holding the nut.

Torque:

157 N*m{1,600 kgf*cm, 116 ft.*lbf}

Connect the height control sensor link and install it with the nut.

Torque:

5.4 N*m{55 kgf*cm, 48 in.*lbf}

Align the matchmarks on the steering sliding yoke sub-assembly and the power steering gear assembly.

Install bolt (A) and tighten the 2 bolts.

Torque:

35 N*m{360 kgf*cm, 26 ft.*lbf}

Install the clamp and connect the No. 3 fuel hose.

Install the clamp and connect the fuel hose.

Connect the 2 wire harness clamps and 3 injector connectors.

Install the bolt, clamp and engine wire No. 3.

Torque:

8.5 N*m{87 kgf*cm, 75 in.*lbf}

Connect the connector and install the 3 clamps to the body.

Connect the wire to the engine room No. 1 junction block. Then, install it with the nut.

Torque:

12 N*m{124 kgf*cm, 9 ft.*lbf}

Install the engine room No. 1 relay block cover.

Connect the battery positive (+) terminal and install it with the nut.

Torque:

13 N*m{133 kgf*cm, 10 ft.*lbf}

Connect the 2 ECM connectors and lower the 2 levers.

NOTICE:

1. When connecting the connector, make sure that dirt, water and other foreign matter does not get caught between the connector and other part.

2. Make sure that the 2 levers are securely lowered.


Connect the engine wire to the engine room junction block.

Install the relay block cover.

Connect the No. 1 vacuum transmitting hose and No. 2 vacuum transmitting hose.

HINT:

1. Be sure to align the paint marks on the vacuum transmitting hoses to the marks on the differential pressure sensor connector.

2. The tabs on the clips should be aligned with the paint marks.

3. Only use water as a lubricant for hose installation.


Install the differential pressure sensor with the nut.

Torque:

8.0 N*m{82 kgf*cm, 71 in.*lbf}

Connect the differential pressure sensor connector.

Remove the attached vinyl tape from the hose.

Apply sufficient compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

Compressor oil:

ND-OIL 8 or equivalent

Install the O-ring onto the discharge hose sub-assembly.

Install the discharge hose sub-assembly onto the compressor assembly with pulley with the bolt.

Torque:

9.8 N*m{100 kgf*cm, 87 in.*lbf}

Remove the attached vinyl tape from the hose.

Apply sufficient compressor oil to a new O-ring and the fitting surface of the compressor and magnetic clutch.

Compressor oil:

ND-OIL 8 or equivalent

Install the O-ring onto the No. 1 cooler refrigerant suction hose.

Install the No. 1 cooler refrigerant suction hose onto the compressor and magnetic clutch with the bolt.

Torque:

9.8 N*m{100 kgf*cm, 87 in.*lbf}

Install the clamp and connect the No. 1 air hose.

Connect the heater water inlet hose.

Connect the heater water outlet hose.

Connect the radiator outlet hose.

Connect the radiator reserve tank hose.

Connect the vacuum transmitting hose.

Connect the wire harness clamp.

Install the air pipe sub-assembly with the bolt.

Torque:

5.0 N*m{51 kgf*cm, 44 in.*lbf}

Connect the intake air temperature sensor connector.

Tighten the 3 hose bands.

Torque:

4.0 N*m{41 kgf*cm, 35 in.*lbf}

Connect the 2 diesel throttle body connectors.

Install the No. 1 water outlet pipe with the 3 bolts.

Torque:

21 N*m{214 kgf*cm, 16 ft.*lbf}

Connect the 2 water hoses with the 2 bands.

Connect the manifold absolute pressure sensor connector and vacuum hose.

Install the intake manifold insulator.

HINT:

Insert the intake manifold insulator between the EGR valve and common rail to make contact with the intake manifold.

Install 2 new gaskets.

Temporarily install No. 2 EGR pipe with the bolt and nut.

Temporarily install the bolt and tighten the 2 bolts.

Torque:

24 N*m{245 kgf*cm, 18 ft.*lbf}

Temporarily install the nut and tighten the 2 nuts.

Torque:

24 N*m{245 kgf*cm, 18 ft.*lbf}

Install the wiring harness clamp bracket with the 2 bolts.

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Connect the oil pressure switch assembly connector (^*1).

Connect the EGR valve connector (^*2).

Connect the 6 wire harness clamps (^*3).

Connect the wire harness clamp.

Install the clamp and connect the union to the check valve hose.

Install the heater assembly with the 4 bolts.

Torque:

Bolt 1:

9.8 N*m{100 kgf*cm, 7 ft.*lbf}

Bolt 2:

5.4 N*m{55 kgf*cm, 48 in.*lbf}

Install the fuel hose and attach the clip.

Install the heater water outlet hose and attach the clip.

Install the heater water inlet hose and attach the clip.

Install the air duct with the clip and clamp.

Install the air cleaner case, clamp and 2 bolts.

Torque:

5.0 N*m{51 kgf*cm, 44 in.*lbf}

Install the air cleaner cap with air cleaner hose assembly with the 4 clamps and hose clamp.

HINT:

Be sure to install the air cleaner assembly so that the screw part of the hose clamp is as shown in the illustration.

Connect the ventilation hose to the cylinder head cover with the clamp.

Connect the MAF meter connector and 2 clamps to the air cleaner.

Install the inlet air cleaner with the bolt and clip.

Torque:

5.0 N*m{51 kgf*cm, 44 in.*lbf}

Install the oil pan drain plug with a new gasket.

Torque:

38 N*m{388 kgf*cm, 28 ft.*lbf}

Add engine oil according to the table below.

Standard capacity:

Item	Capacity
Drain and refill with oil filter change	6.0 liters (6.3 US qts, 5.3 lmp. qts)
Drain and refill without oil filter change	5.2 liters (5.5 US qts, 4.6 lmp. qts)
Dry fill	6.7 liters (7.1 US qts, 5.9 lmp. qts)

Tighten all the plugs.

Torque:

for cylinder block drain cock plug:

20 N*m{204 kgf*cm, 15 ft.*lbf}

Add engine coolant.

Specified capacity:

8.9 liters (9.4 US qts, 7.8 lmp. qts)

HINT:

1. The coolant reserve tanks of TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damage to the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology that consists of a combination of low phosphates and organic acids).


1. Contact your TOYOTA dealer for further details.


Slowly pour coolant into the radiator reservoir until it reaches the FULL line.

Squeeze the inlet and outlet radiator hoses several times by hand, and then check the level of the coolant.
If the coolant level is low, add coolant.

Install the radiator cap.

Bleed air from the cooling system.

NOTICE:

Before starting the engine, turn the A/C switch off.

1. Warm up the engine until the thermostat opens. While the thermostat is open, allow the coolant to circulate for several minutes.


   HINT:

   The thermostat open timing can be confirmed by squeezing the inlet radiator hose by hand, and sensing vibrations when the engine coolant starts to flow inside the hose.

   NOTICE:

   When squeezing the radiator hose:

   1. Wear protective gloves.

   1. Be careful as the radiator hoses are hot.

   1. Keep your hands away from the radiator fan.


2. Maintain the engine speed at 2,000 to 2,500 rpm.


3. Squeeze the inlet and outlet radiator hoses several times by hand to bleed air from the system.


   NOTICE:

   When squeezing the radiator hoses:

   1. Wear protective gloves.

   1. Be careful as the radiator hoses are hot.

   1. Keep your hands away from the radiator fan.


Stop the engine and wait until the engine coolant cools down to ambient temperature.

CAUTION:

Do not remove the radiator cap while the engine and radiator are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

Check the coolant level in the reserve tank.
If the coolant level is low, add coolant to the reserve tank FULL line.

Perform vacuum purging using a vacuum pump.

Charge refrigerant HFC-134a (R134a).

Standard:

430 +- 30 g (15.17 +- 1.06 oz.)

SST

07110-58060(07117-58060,07117-58070,07117-58080,07117-58090,07117-78050,07117-88060,07117-88070,07117-88080)

NOTICE:

1. Do not operate the cooler compressor before charging refrigerant as the cooler compressor will not work properly without any refrigerant, and will overheat.


1. Approximately 100 g (3.53 oz.) of refrigerant may need to be charged after bubbles disappear. The refrigerant amount should be checked by measuring its quantity, and not with the sight glass.


Fill the radiator with coolant and attach a radiator cap tester.

Warm up the engine.

Using a radiator cap tester, increase the pressure inside the radiator to 177 kPa (1.8 kgf/cm, 26 psi), and check that the pressure does not drop.
If the pressure drops, check the hoses, radiator and water pump for leaks. If no external leaks are found, check the heater core, cylinder block and cylinder head.

PERFORM ACTIVE TEST

1. Connect the intelligent tester to the DLC3.


2. Turn the engine switch ON (IG).


3. Turn the intelligent tester ON.


4. Enter the following menus: Powertrain / ENGINE / Active Test.


5. Perform the Active Test.



   Intelligent Tester Display	Test Details	Control Range	Diagnostic Notes
   Test the Fuel Leak	Pressurize common rail internal fuel pressure, and check for fuel leaks	Stop/Start	Fuel pressure inside common rail pressurized to specified value and engine speed increased to 2,000 rpm when "Start" is selected Above conditions to be maintained while "Start" is selected

After recharging the refrigerant gas, check for refrigerant gas leakage using a halogen leak detector.

Perform the operation under the following conditions:

1. Stop the engine.


1. Secure good ventilation (the gas leak detector may react to volatile gases other than refrigerant, such as evaporated gasoline or exhaust gas).


1. Repeat the test 2 or 3 times.


1. Make sure that some refrigerant remains in the refrigeration system. When compressor is off: approximately 392 to 588 kPa (4 to 6 kgf*cm² 57 to 85 psi)


Using a gas leak detector, check the refrigerant line for leakage.

If a gas leak is not detected on the drain hose, remove the blower motor control (blower resistor) from the cooling unit. Insert the gas leak detector sensor into the unit and perform the test.

Disconnect the connector and leave the pressure switch on for approximately 20 minutes. Bring the gas leak detector close to the pressure switch and perform the test.

Warm up and stop the engine.

Connect the intelligent tester to the DLC3.

Turn the engine switch on (IG).

Select the items:
Powertrain / Engine / Data List / Engine SPD.

HINT:

Refer to the intelligent tester operation manual if you need help to select Data List.

Inspect the engine idle speed.

Idle speed:

750 to 850 rpm

Turn the engine switch off.

Disconnect the intelligent tester from the DLC3.

Warm up the engine, stop the engine and wait for 5 minutes. The oil level should be between the low and full level marks of the dipstick.
If the level is below the low level mark, check for leakage and add oil until it reaches the full level mark.

NOTICE:

Do not fill the engine oil above the full level mark.

Install the engine under cover rear LH with the bolt.

Install the protector with the 4 bolts.

Torque:

8.0 N*m{82 kgf*cm, 71 in.*lbf}

Install the No. 1 engine cover.

Install the side cover with the 4 clips.

Install the side cover with the 2 clips.

Install the intake duct seal with the 11 clips.

Perform initialization procedure (Click here).

HINT:

Some vehicle systems require initialization after reconnecting the negative battery terminal.
