Clutch Unit (For 2Ad-Fhv) Installation

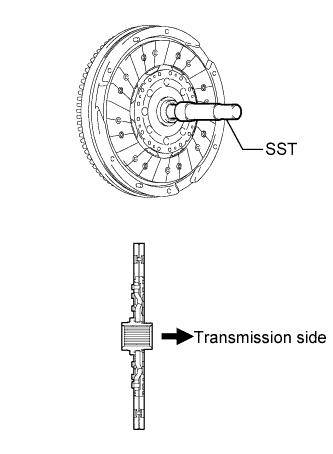

Insert SST into the clutch disc, and then insert the SST into the flywheel.

SST

09301-00220

NOTICE:

Do not insert the clutch disc in the wrong direction.

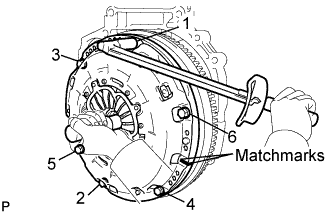

Align the matchmarks on the clutch cover assembly and on the flywheel sub-assembly.

Tighten 6 new bolts uniformly in the order shown in the illustration, starting with the bolt located near the knock pin on the top.

Torque:

19 N*m{195 kgf*cm, 14 ft.*lbf}

NOTICE:

1. Following the order in the illustration, make sure to uniformly tighten the bolts 180°.

2. After checking that the disc is in the center, gently move SST up and down, right and left to tighten the bolts.

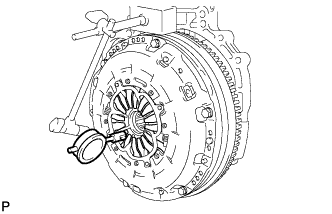

Using a dial indicator with a roller instrument, measure the diaphragm spring tip alignment.

Maximum non-alignment:

1.3 mm (0.051 in.)

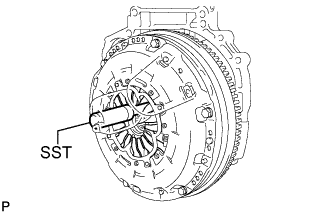

If the alignment is not as specified, adjust the diaphragm spring tip alignment using SST.

SST

09333-00013

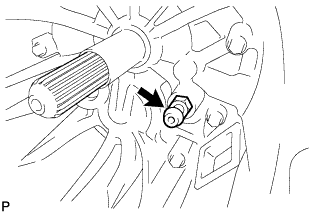

Install the release fork support to the transmission assembly.

Torque:

47 N*m{479 kgf*cm, 35 ft.*lbf}

Install the clutch release fork boot onto the manual transmission case.

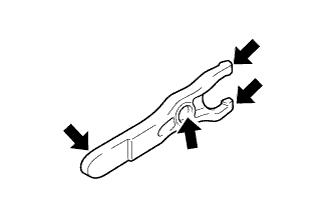

Apply release hub grease to the release fork and release bearing assembly contact, release fork and push rod contact, and release fork pivot points.

Sealant:

Toyota Genuine Release Hub Grease or Equivalent

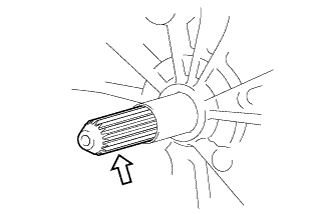

Apply clutch sealant grease to the spline coupling part.

Sealant:

Toyota Genuine Clutch Spline Grease or Equivalent

Install the release bearing hub clip to the clutch release bearing.

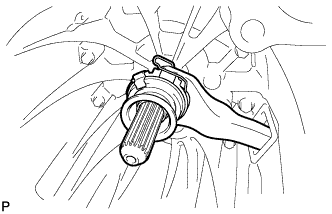

Install the bearing to the release fork, and then install them to the transmission assembly.
