Dtc P0627 Fuel Pump Control Circuit / Open

Engine. Lexus Is250, Is220D. Gse20 Ale20
2Ad-Fhv Engine Control System. Lexus Is250, Is220D. Gse20 Ale20

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

INSPECT SUPPLY PUMP ASSEMBLY

CHECK HARNESS AND CONNECTOR (SCV - ECM)

CHECK IF DTC OUTPUT REOCCURS (SEE IF DTC P0627 IS OUTPUT AGAIN)

DTC P0627 Fuel Pump Control Circuit / Open


DESCRIPTION


DTC No.
DTC Detection Condition
Trouble Area
P0627
Open or short in suction control valve circuit for more than 0.5 seconds
(1 trip detection logic)
  1. Open or short in suction control valve circuit
  2. Suction control valve
  3. ECM

HINT:
  1. For more information on the supply pump (suction control valve) and the common rail system, refer to the system description (Click here).
  2. When DTC P0627 is set, check the internal fuel pressure of the common rail by entering the following menus on the intelligent tester: Powertrain / Engine / Data List / Fuel Press.

Reference:
Engine Speed
Fuel Pressure
Idling
Approximately 37 to 43 MPa
2,500 rpm (No engine load)
Approximately 60 to 66 MPa

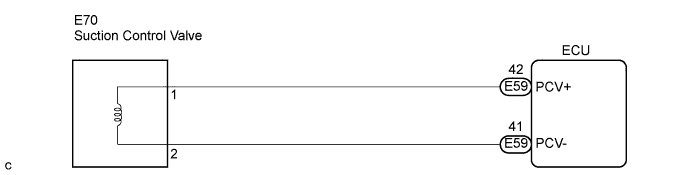

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Engine Control System.Ecd System. Dtc P0627 Fuel Pump Control Circuit / Open


INSPECTION PROCEDURE

NOTICE:
  1. After replacing the ECM, the new ECM needs registration (Click here) and initialization (Click here).
  2. After replacing a supply pump, the ECM needs initialization (Click here).
1.INSPECT SUPPLY PUMP ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Engine Control System.Ecd System. Dtc P0627 Fuel Pump Control Circuit / Open

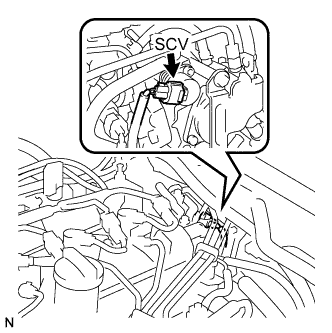

  1. Disconnect the E70 suction control valve connector.

  1. Measure the resistance of the suction control valve.

    Standard resistance:
    Condition
    		Specified Condition
    20°C (68°F)
    		1.9 to 2.3 Ω


NG
REPLACE SUPPLY PUMP ASSEMBLY
OK


2.CHECK HARNESS AND CONNECTOR (SCV - ECM)


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Engine Control System.Ecd System. Dtc P0627 Fuel Pump Control Circuit / Open

  1. Disconnect the E70 valve connector.

  1. Disconnect the E59 ECM connector.

  1. Measure the resistance of the wire harness side connectors.

    Standard resistance:
    Tester Connection
    		Specified Condition

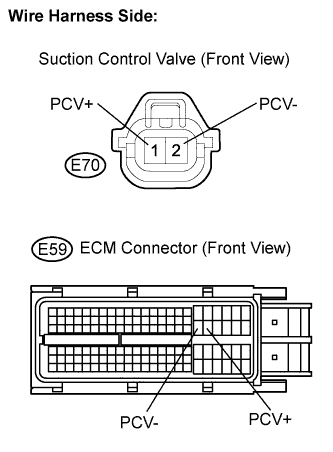

    PCV+ (E70-1) - PCV+ (E59-42)
    		Below 1 Ω
    PCV- (E70-2) - PCV- (E59-41)
    		Below 1 Ω
    PCV+ (E70-1) or PCV+ (E59-42) - Body ground
    		10 kΩ or higher
    PCV- (E70-2) or PCV- (E59-41) - Body ground
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.CHECK IF DTC OUTPUT REOCCURS (SEE IF DTC P0627 IS OUTPUT AGAIN)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the engine switch ON (IG) and turn the tester ON.

  1. Clear DTCs.

  1. Start the engine.

  1. Enter the following menus: Powertrain / Engine / DTC.

  1. Read the DTCs using the intelligent tester.

    Result:

    Display (DTC output)
    		Proceed to
    P0627
    		A
    No output
    		B


B
CHECK FOR INTERMITTENT PROBLEMS
A

REPLACE ECM
