Exhaust Gas Temperature Sensor Inspection

Engine. Lexus Is250, Is220D. Gse20 Ale20

2Ad-Fhv Emission Control. Lexus Is250, Is220D. Gse20 Ale20

INSPECT EXHAUST GAS TEMPERATURE SENSOR (UPPER)
INSPECT EXHAUST GAS TEMPERATURE SENSOR (LOWER)

Exhaust Gas Temperature Sensor -- Inspection

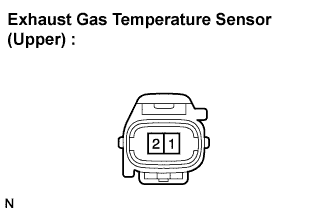

1. INSPECT EXHAUST GAS TEMPERATURE SENSOR (UPPER)

Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Emission Control.Emission Control System.Exhaust Gas Temperature Sensor Inspection

Inspect the resistance.
1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.
  Standard resistance:
  Terminals
  Condition
  Resistance
  1 - 2
  20°C (68°F)
  214.8 kΩ
  HINT:
  The temperature indicated in "Condition" is the temperature of the exhaust gas temperature sensor.
  If the result is not as specified, replace the exhaust gas temperature sensor (upper).

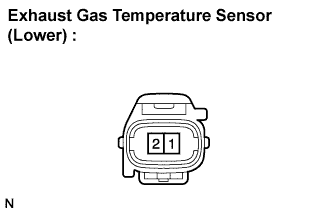

2. INSPECT EXHAUST GAS TEMPERATURE SENSOR (LOWER)

Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Emission Control.Emission Control System.Exhaust Gas Temperature Sensor Inspection

Inspect the resistance.
1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.
  Standard resistance:
  Terminals
  Condition
  Resistance
  1 - 2
  20°C (68°F)
  214.8 kΩ
  HINT:
  The temperature indicated in "Condition" is the temperature of the exhaust gas temperature sensor.
  If the result is not as specified, replace the exhaust gas temperature sensor (lower).
