Exhaust Fuel Addition Injector Installation

Install a new gasket, exhaust fuel addition injector and nozzle holder clamp with the bolt and washer.

Torque:

29 N*m{296 kgf*cm, 21 ft.*lbf}

HINT:

Install the nozzle holder clamp while holding it.

Install the fuel tube sub-assembly and a new gasket with the union bolt.

Torque:

23 N*m{235 kgf*cm, 17 ft.*lbf}

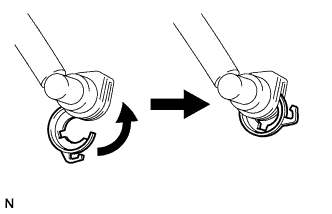

Turn the retainer in the direction indicated by the arrow until the retainer stops.

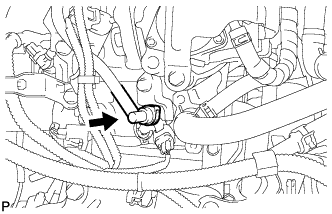

Insert the fuel tube connector into the injector.

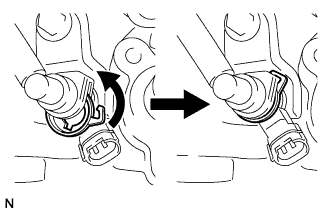

Turn the retainer in the direction indicated by the arrow until it makes a "click" sound.

NOTICE:

If the fuel tube connector is not inserted to the correct position of the injector, the retainer cannot be turned further in the direction of the arrow.

Connect the exhaust fuel addition injector connector.
