DTC 01-DC Transmission Error


DESCRIPTION


DTC No.
DTC Detection Condition
Trouble Area
01-DC
Transmission to component shown by sub-code failed (Detecting this DTC does not always mean actual failure)
If the same sub-code is recorded in other components, check harness for power supply and communication system of all components shown by code
NOTICE:
  1. The radio receiver is the master unit.
  2. Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.

INSPECTION PROCEDURE

NOTICE:
Be sure to read DESCRIPTION before performing the following procedures.
1.CHECK FOR DTC OF OTHER COMPONENTS

  1. Check if the component shown by the sub-code is displayed in the check result of the other components.

    1. Check if "01-DC" is output for the other components.

    2. If "01-DC" is output for any other components, check if the same physical address is displayed.

      Result:
      Result
      		Proceed to
      "01-DC" is output and the same physical address is displayed
      		A
      "01-DC" is not output or the same physical address is not displayed
      		B
HINT:
For the list of the components shown by sub-codes, refer to the table in step 2.


B
Go to step 4
A


2.IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE


  1. Enter the diagnostic mode.


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System. Dtc 01-Dc Transmission Error

  1. Press the preset switch "3" to change to "Detailed Information Mode".

  1. Identify the component which has stored this code.

    Component Table:
    Component
    		Physical address
    Gateway ECU
    		1C6
    Stereo component amplifier
    		440
    Integration control & panel assembly
    		1D8
    Radio receiver
    		190
HINT:

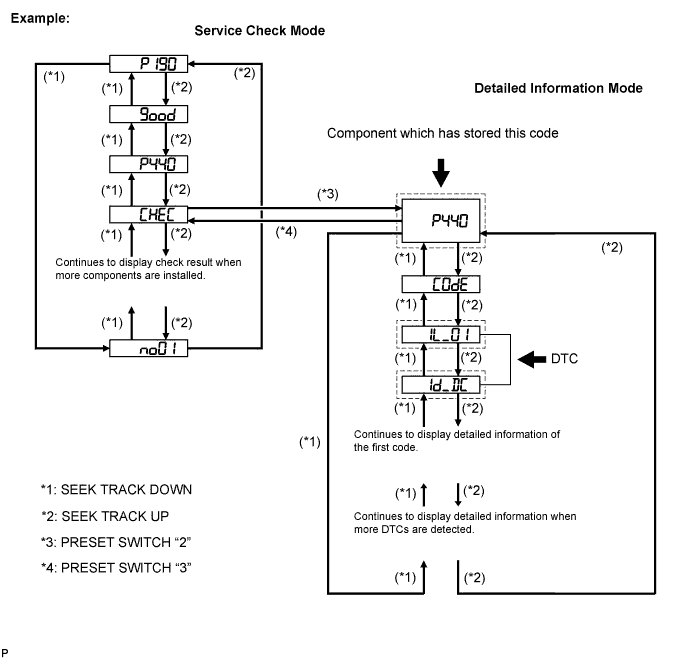

  1. "440 (stereo component amplifier)" is the component which has stored this code in the example shown in the illustration.
  1. For details of the DTC display, refer to "DTC CHECK/CLEAR" (Click here).

NEXT


3.CHECK COMPONENT WHICH HAS STORED THIS CODE

  1. Select the component which has stored this code.

    Component Table:
    Component
    		Proceed to
    Gateway ECU
    		Gateway ECU communication error (Click here)
    Stereo component amplifier
    		Stereo component amplifier communication error (Click here)
    Integration control & panel assembly
    		Integration control & panel assembly communication error (Click here)
    Radio receiver
    		Radio receiver communication error (Click here)

NEXT

END

4.CLEAR DTC

  1. Clear the DTCs (Click here).

    HINT:
    If "01-DC" is output for only one component, this may not indicate a malfunction.

NEXT


5.RECHECK DTC

  1. Recheck for DTCs and check if the same trouble code occurs again.

    OK:
    Malfunction disappears.


NG
Go to step 3
OK

END
