DESCRIPTION
INSPECTION PROCEDURE
CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT
INSPECT RADIO RECEIVER
IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)
REPLACE MULTI-DISPLAY
DTC 01-DD Master Reset |
DTC 01-E1 Voice Processing Device ON Error |
DESCRIPTION
DTC No.
| DTC Detection Condition
| Trouble Area
|
01-DD
| The device that should be the master has been disconnected after the engine starts.
| - Multi-display power source circuit
- AVC-LAN circuit between the multi-display and the component which has stored this code
- Multi-display
- Component which has stored this code
|
01-E1 *1
| The AMP device records that the AMP output does not function even while the source device is operating.
|
- HINT:
- *1: Even if no fault is present, this trouble code may be stored depending on the battery condition or engine start voltage.
- NOTICE:
- Before starting troubleshooting, be sure to clear DTCs to erase codes stored due to the reasons described in the HINT above. Then, check for DTCs and troubleshoot according to the output DTCs.
- The multi-display is the master unit.
- Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.
INSPECTION PROCEDURE
- NOTICE:
- Be sure to read DESCRIPTION before performing the following procedures.
1.CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT |
Refer to the multi-display power source circuit (Click here).If the power source circuit is operating normally, proceed to the next step.
Disconnect the radio receiver connectors.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
ATX+ (J66-5) - ATX- (J66-15)
| Always
| 60 to 80 Ω
|
TX+ (J63-9) - TX- (J63-10)
| Always
| 60 to 80 Ω
|
3.IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE |
Enter the diagnostic mode.
Press the "LAN Mon" switch to change to "LAN Monitor" mode.
Identify the component which has stored this code.
Component Table:Display
| Component
|
AUDIO H/U
| Radio receiver
|
DSP-AMP
| Stereo component amplifier
|
G/W
| Gateway ECU
|
NAVI
| Navigation ECU
|
CAMERA-C
| Television camera ECU
|
- HINT:

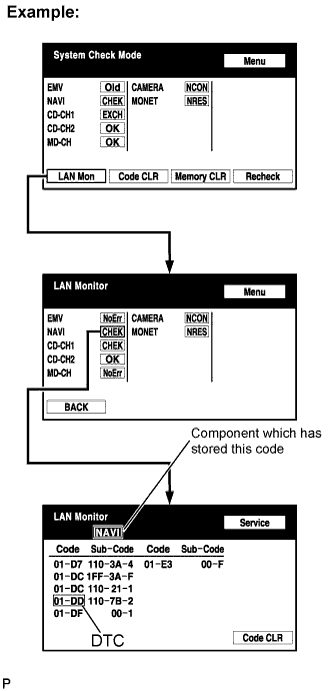

- "NAVI" is the component which has stored this code in the example shown in the illustration.
4.CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE) |
- HINT:
- For details of the connectors, refer to "TERMINALS OF ECU" (Click here).
Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
Disconnect all connectors between the multi-display and the component which has stored this code.
Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.
- OK:
- There is no open or short circuit.
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
Replace the multi-display with a normal one and check if the same problem occurs again.
- OK:
- Same problem does not occur.
| REPLACE COMPONENT WHICH HAS STORED THIS CODE |
|
|
