Clutch Unit (For 2Ad-Fhv) Inspection

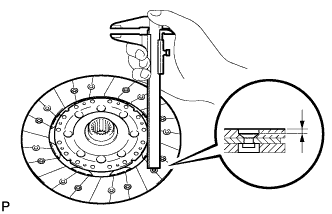

Using vernier calipers, measure the rivet head depth.

Minimum rivet depth:

0.3 mm (0.012 in.)

Install the clutch disc assembly to the transaxle assembly.

NOTICE:

Take care not to insert the clutch disc assembly in the wrong direction.

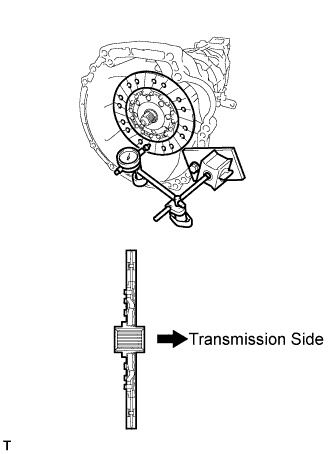

Using a dial indicator with a roller instrument, measure the clutch disc assembly runout.

Maximum runout:

0.8 mm (0.032 in.)

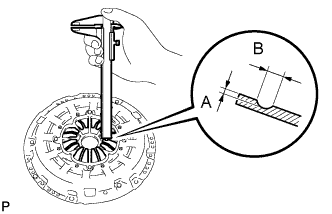

Using vernier calipers, measure the diaphragm spring for the depth and width of wear.

Maximum:

A (Depth):

0.5 mm (0.020 in.)

B (Width):

6.0 mm (0.236 in.)

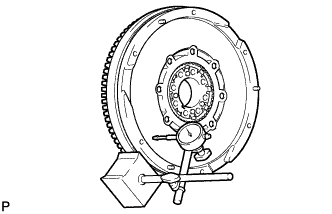

Using a dial indicator, measure the flywheel sub-assembly runout.

Maximum runout:

0.1 mm (0.004 in.)

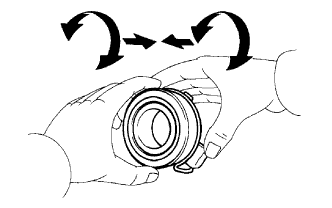

Turn the release bearing by hand while applying force in the axial direction.

HINT:

The bearing is permanently lubricated and requires no cleaning or lubrication.

Replace the release bearing assembly as necessary.
