Fuel Sender Gauge Assembly (For 2Ad-Fhv) Inspection

Disconnect the fuel sender gauge connector.

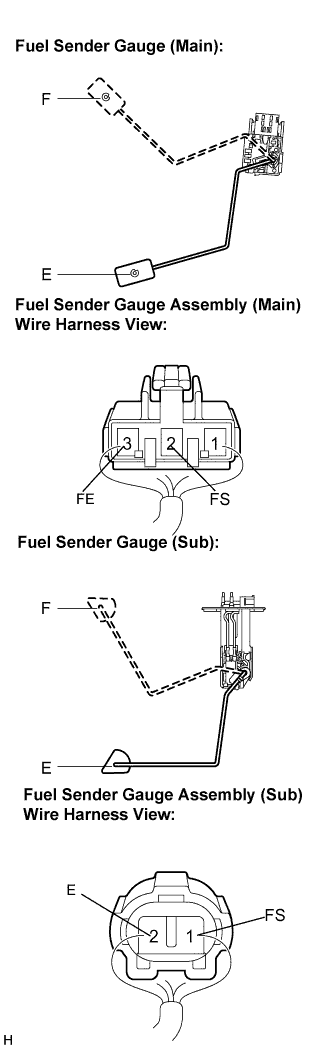

Inspect the fuel sender gauge assembly (main).

1. Remove the fuel sender gauge assembly (main).


2. Check that the float moves smoothly between F and E.


3. Measure the resistance between terminals 2 (S) and 3 (FE) of the connector according to the value(s) in the table below.


   Standard resistance:

   Fuel Sender Gauge Assembly (Main):

   Float Level	Resistance (Ω)
   F	6.5 to 8.5
   Between E and F	6.5 to 233.0
   E	228.0 to 233.0

Inspect the fuel sender gauge assembly (sub).

Remove the fuel sender gauge assembly (sub).

Check that the float moves smoothly between F and E.

Measure the resistance between terminals 1 (FS) and 2 (E) of the connector according to the value(s) in the table below.

Standard resistance:

Fuel Sender Gauge Assembly (Sub):

Float Level	Resistance (Ω)
F	6.5 to 8.5
Between E and F	6.5 to 181.5
E	177.5 to 181.5

HINT:

If the value is not as specified, replace the fuel sender gauge assembly.
