NAVIGATION SYSTEM - Microphone Circuit between Overhead J/B and Multi-display


DESCRIPTION

This circuit sends a microphone signal from the overhead J/B to the multi-display. It also supplies power from the multi-display to the overhead J/B.

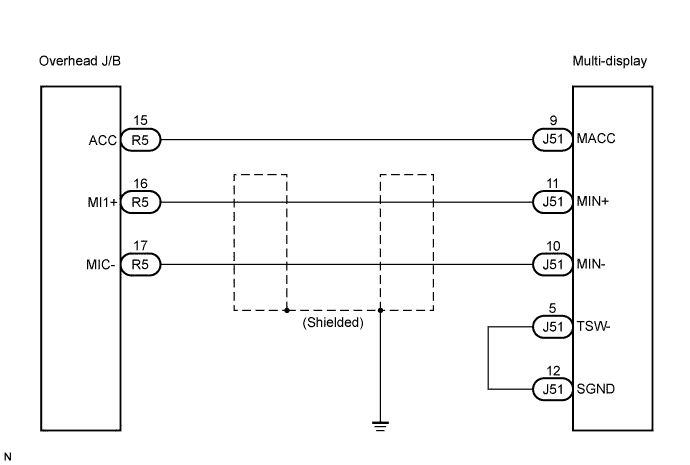

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Navigation.Navigation System.Navigation System  Microphone Circuit Between Overhead J/B And Multi-Display


INSPECTION PROCEDURE

1.CHECK HARNESS AND CONNECTOR (OVERHEAD J/B - MULTI-DISPLAY)

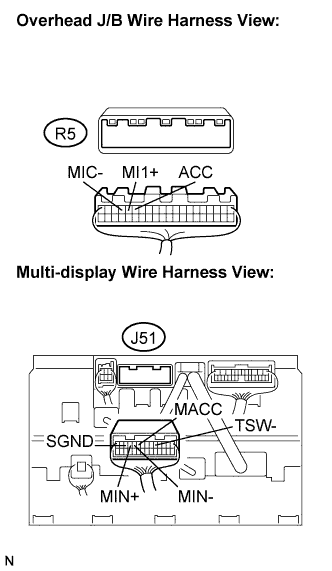

    Lexus Is250, Is220D. Gse20 Ale20.Navigation.Navigation System.Navigation System  Microphone Circuit Between Overhead J/B And Multi-Display
  1. Disconnect the overhead J/B connector R5 and multi-display connector J51.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester connection
    Condition
    Specified condition
    ACC - MACC
    Always
    Below 1 Ω
    MI1+ - MIN+
    Always
    Below 1 Ω
    MIC- - MIN-
    Always
    Below 1 Ω
    TSW- - SGND
    Always
    Below 1 Ω
    ACC - Body ground
    Always
    10 kΩ or higher
    MI1+ - Body ground
    Always
    10 kΩ or higher
    MIC- - Body ground
    Always
    10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


2.INSPECT MULTI-DISPLAY (CRT DISPLAY) DISPLAY

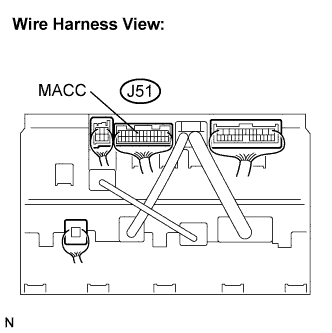

    Lexus Is250, Is220D. Gse20 Ale20.Navigation.Navigation System.Navigation System  Microphone Circuit Between Overhead J/B And Multi-Display
  1. Reconnect the multi-display connector J51.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester connection
    Condition
    Specified condition
    MACC - Body ground
    Engine switch on (ACC)
    4 to 6 V


NG
REPLACE MULTI-DISPLAY
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
