Navigation System Display Signal Circuit Between Television Camera Ecu And Multi-Display
DESCRIPTION
WIRING DIAGRAM
INSPECTION PROCEDURE
CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU - MULTI-DISPLAY)
NAVIGATION SYSTEM - Display Signal Circuit between Television Camera ECU and Multi-display |
DESCRIPTION
This is the display signal circuit from the television camera ECU to the multi-display.

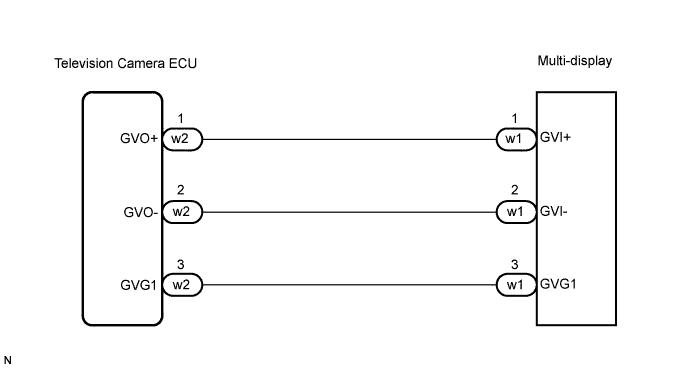

WIRING DIAGRAM
INSPECTION PROCEDURE

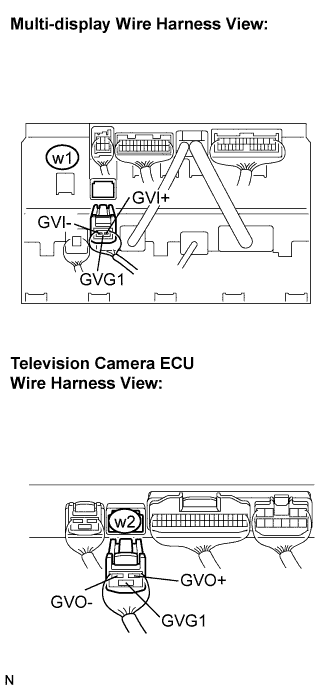

| 1.CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ECU - MULTI-DISPLAY) |
Disconnect the multi-display connector w1 and television camera ECU connector w2.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester connection
| Condition
| Specified condition
|
GVI+ - GVO+
| Always
| Below 1 Ω
|
GVI- - GVO-
| Always
| Below 1 Ω
|
GVG1 - GVG1
| Always
| Below 1 Ω
|
GVIF- - Body ground
| Always
| 10 kΩ or higher
|
GVIF+ - Body ground
| Always
| 10 kΩ or higher
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| OK |
|
|
|
| PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
