Seat Belt Warning System Terminals Of Ecu
COMBINATION METER ASSEMBLY
MULTI-MEDIA MODULE DISPLAY (WITH NAVIGATION SYSTEM)
INTEGRATION CONTROL & PANEL (WITHOUT NAVIGATION SYSTEM)
Seat Belt Warning System -- Terminals Of Ecu |

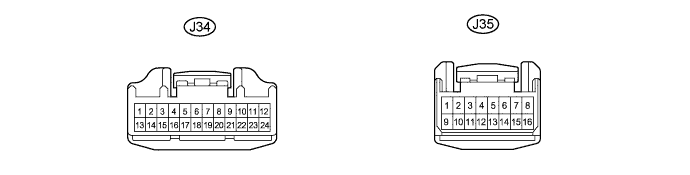

| COMBINATION METER ASSEMBLY |
- Voltage:
Terminal No. (Symbols)
| Terminal Description
| Condition
| Specified Condition
|
J34-12 (IG+) - Body ground
| Power supply
| Engine switch OFF → ON (IG)
| Below 1 V → 10 to 14 V
|
- Resistance:
Terminal No. (Symbols)
| Terminal Description
| Condition
| Specified Condition
|
J35-4 (P/SB) - Body ground
| Passenger seat belt signal
| The passenger seat is occupied, seat belt is fastened → unfastened
| Below 1 Ω → 10 kΩ or higher
|
J34-1 (E2) - Body ground
| Ground
| Always
| Below 1 Ω
|

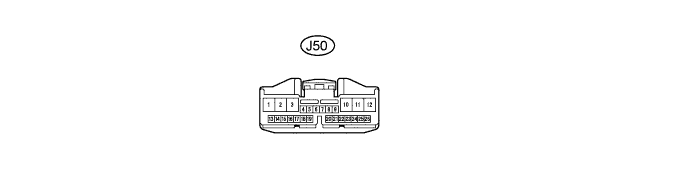

| MULTI-MEDIA MODULE DISPLAY (WITH NAVIGATION SYSTEM) |
- Voltage:
Terminal No. (Symbols)
| Terminal Description
| Condition
| Specified Condition
|
J50-3 (IG+) - Body ground
| Power supply
| Engine switch OFF → ON (IG)
| Below 1 V → 10 to 14 V
|
- Resistance:
Terminal No. (Symbols)
| Terminal Description
| Condition
| Specified Condition
|
J50-21 (PBEW) - Body ground
| Passenger seat belt signal
| The passenger seat is occupied seat belt is fastened → unfastened
| Below 1 Ω → 10 kΩ or higher
|

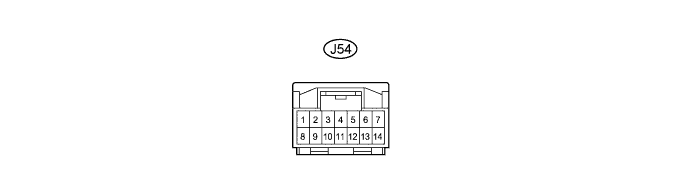

| INTEGRATION CONTROL & PANEL (WITHOUT NAVIGATION SYSTEM) |
- Voltage:
Terminal No. (Symbols)
| Terminal Description
| Condition
| Specified Condition
|
J54-4 (IG+) - Body ground
| Power supply
| Engine switch OFF → ON (IG)
| Below 1 V → 10 to 14 V
|
- Resistance:
Terminal No. (Symbols)
| Terminal Description
| Condition
| Specified Condition
|
J54-13 (PBEW) - Body ground
| Passenger seat belt signal
| The passenger seat is occupied seat belt is fastened → unfastened
| Below 1 Ω → 10 kΩ or higher
|
