PARKING ASSIST MONITOR SYSTEM - Television Camera ECU Power Source Circuit |
DESCRIPTION
This circuit is the power source circuit to operate the television camera ECU.

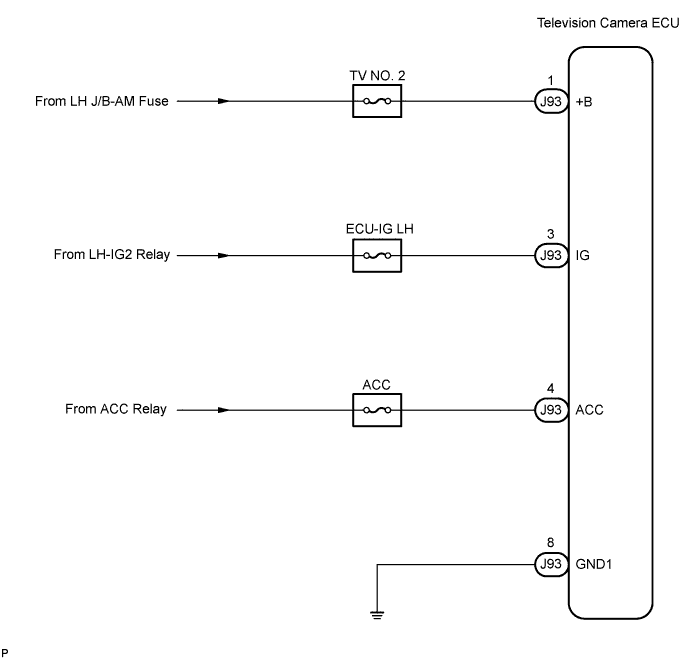

WIRING DIAGRAM
INSPECTION PROCEDURE
1.INSPECT TELEVISION CAMERA ECU |

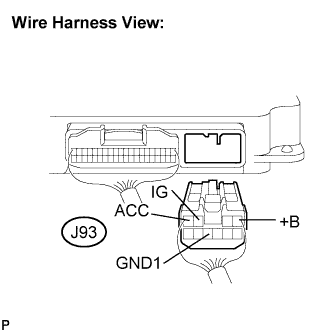

Disconnect the J93 connector from the television camera ECU.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester connection
| Condition
| Specified condition
|
GND1 - Body ground
| Always
| Below 1 Ω
|
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester connection
| Condition
| Specified condition
|
+B - GND1
| Always
| 10 to 14 V
|
IG - GND1
| Engine SW on (IG)
| 10 to 14 V
|
ACC - GND1
| Engine SW on (ACC)
| 10 to 14 V
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
