Clutch Accumulator Removal

Transmission. Lexus Is250, Is220D. Gse20 Ale20
Clutch. Lexus Is250, Is220D. Gse20 Ale20

  1. DISCONNECT CLUTCH LINE

  2. REMOVE CLUTCH TUBE

  3. REMOVE CLUTCH ACCUMULATOR ASSEMBLY

Clutch Accumulator -- Removal



1. DISCONNECT CLUTCH LINE


    Lexus Is250, Is220D. Gse20 Ale20.Clutch.Clutch System.Clutch Accumulator Removal

  1. Remove the bolt and separate the clutch line clamp.

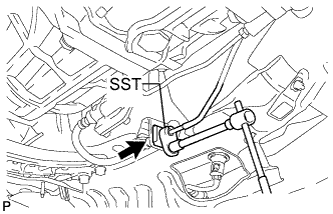

  1. Using SST, disconnect the clutch line.

    SST
    09023-00101
    HINT:
    Use a container to catch the fluid.


2. REMOVE CLUTCH TUBE


    Lexus Is250, Is220D. Gse20 Ale20.Clutch.Clutch System.Clutch Accumulator Removal

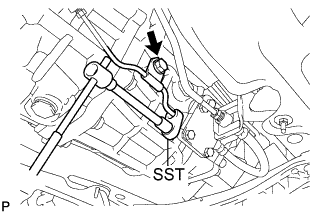

  1. Using SST, disconnect the clutch line.

    SST
    09023-00101
    HINT:
    Use a container to catch the fluid.

  1. Remove the clip and disconnect the clutch tube.

    HINT:
    Use a container to catch the fluid.


    Lexus Is250, Is220D. Gse20 Ale20.Clutch.Clutch System.Clutch Accumulator Removal

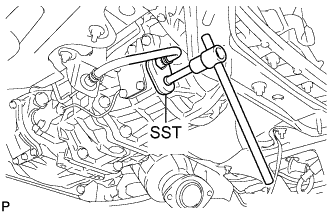

  1. Using SST, remove the clutch tube.

    SST
    09023-12701
    HINT:
    Use a container to catch the fluid.


3. REMOVE CLUTCH ACCUMULATOR ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 bolts and clutch accumulator.
