Clutch Accumulator Installation

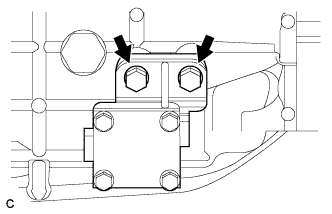

Temporarily tighten the clutch accumulator with the 2 bolts.

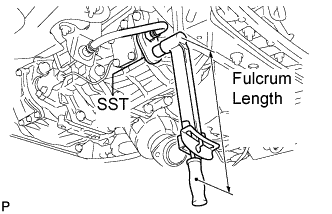

Using SST, connect the clutch tube.

SST

09023-12701

Torque:

When using SST:

21 N*m{216 kgf*cm, 16 ft.*lbf}

When not using SST:

23 N*m{235 kgf*cm, 17 ft.*lbf}

HINT:

Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).

Connect the clutch tube to the bracket with a new clip.

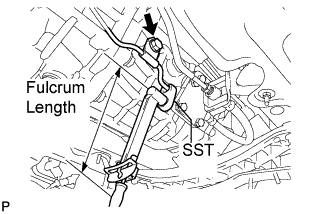

Using SST, connect the clutch tube.

SST

09023-00101

Torque:

15 N*m{153 kgf*cm, 11 ft.*lbf}

HINT:

Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

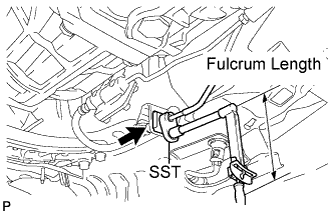

Using SST, connect the clutch line.

Torque:

15 N*m{153 kgf*cm, 11 ft.*lbf}

HINT:

Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

Temporarily tighten the clutch line with the bolt.

Fully tighten the clutch accumulator with the 3 bolts.

Torque:

12 N*m{120 kgf*cm, 9 ft.*lbf}

Fill the brake reservoir with the brake fluid and bleed the clutch system (Click here).

Torque:

11 N*m{112 kgf*cm, 8 ft.*lbf}

Check for leakage in the clutch system.
