THEFT DETERRENT SYSTEM (w/ Intrusion Sensor) - Theft Warning Siren Circuit


DESCRIPTION

  1. The theft warning siren has an internal battery. If the vehicle's battery or any of the communication lines is open, the theft warning siren detects it by itself and sounds. Although the theft warning siren usually sounds by receiving a signal from the main body ECU RH, the theft warning siren can sound by its internal battery in case the vehicle's battery is open.
  2. The main body ECU RH sends an arming signal to the theft warning siren while transferring to the armed state, and it also sends a disarming signal to the siren while switching to the disarmed state. Also, the main body ECU RH can cause the theft warning siren to sound by sending an alarm signal during the alarm sounding state.

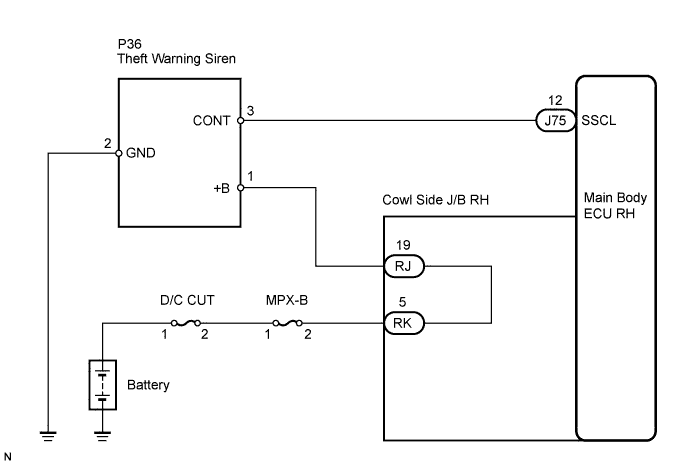

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) Theft Warning Siren Circuit


INSPECTION PROCEDURE

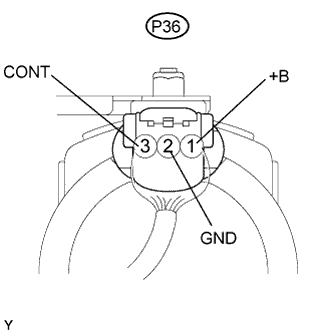

1.CHECK THEFT WARNING SIREN ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) Theft Warning Siren Circuit

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Condition
    P36-1 (+B) - Body ground
    		Always
    		10 to 14 V
    P36-2 (GND) - Body ground
    		Always
    		Below 1 V
    P36-3 (CONT) - Body ground
    		When switched from armed state or arming preparation state to disarmed state (1)
    		Pulse generation*1
    (Using oscilloscope)
    When switched from arming preparation state to armed state (2)
    		Pulse generation*2
    (Using oscilloscope)
    Normal condition (Except (1) and (2))
    		Approx. 1.4 V

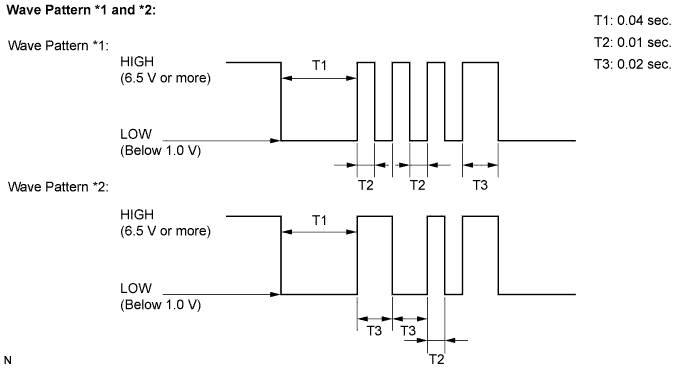

  1. Wave pattern of the pulse generation *1 and *2


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) Theft Warning Siren Circuit



NG
Go to step 2
OK

REPLACE THEFT WARNING SIREN ASSEMBLY

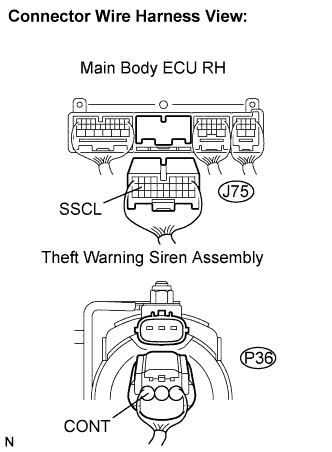

2.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU RH - THEFT WARNING SIREN)


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) Theft Warning Siren Circuit

  1. Disconnect the J75 ECU and P36 siren connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Symbol (Tester Connection)
    		Specified Condition
    SSCL (J75-12) - CONT (P36-3)
    		Below 1 Ω
    SSCL (J75-12) - Body ground
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

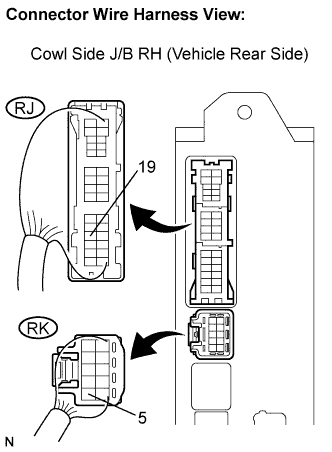

3.CHECK HARNESS AND CONNECTOR (THEFT WARNING SIREN - COWL SIDE J/B RH - BATTERY)


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) Theft Warning Siren Circuit

  1. Disconnect RJ and RK J/B connectors.

  1. Measure the voltage and resistance according to the value(s) in the table below.

    Standard:
    Symbol (Tester Connection)
    		Specified Condition
    +B (P36-1) - RJ-19
    		Below 1 Ω
    +B (P36-1) - Body ground
    		10 kΩ or higher
    RK-5 - Body ground
    		10 to 14 v


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

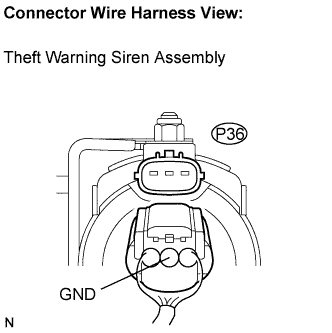

4.CHECK HARNESS AND CONNECTOR (THEFT WARNING SIREN - BODY GROUND)


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) Theft Warning Siren Circuit

  1. Disconnect the P36 siren connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Symbol (Tester Connection)
    		Specified Condition
    GND (P36-2) - Body ground
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE MAIN BODY ECU RH (COWL SIDE JUNCTION BLOCK RH)
