Meter / Gauge System Diagnosis System

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Meter. Lexus Is250, Is220D. Gse20 Ale20

  1. CHECK DLC3

Meter / Gauge System -- Diagnosis System



CHECK DLC3


    Lexus Is250, Is220D. Gse20 Ale20.Meter.Meter / Gauge System.Meter / Gauge System Diagnosis System

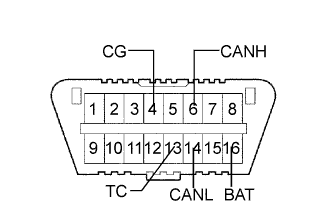

  1. The vehicle's combination meter (ECU) uses CAN and the ISO 9142-2 (Euro-OBD) for communication protocol. The terminal arrangement of the DLC3 complies with ISO 15031-03 and matches the ISO 9141-2 format.

    Symbols (Terminal No.)
    		Terminal Description
    		Condition
    		Specified Condition
    CG (4) - Body ground
    		Chassis ground
    		Always
    		Below 1 Ω
    BAT (16) - Body ground
    		Battery positive
    		Always
    		11 to 14 V
    CANH (6) - CANL (14)
    		HIGH-level CAN bus line
    		Engine switch off
    		54 to 67 Ω
    CANH (6) - Body ground
    		HIGH-level CAN bus line
    		Engine switch off
    		1 MΩ or higher
    CANH (6) - CG (4)
    		HIGH-level CAN bus line
    		Engine switch off
    		3 kΩ or higher
    CANL (14) - Body ground
    		LOW-level CAN bus line
    		Engine switch off
    		1 MΩ or higher
    CANL (14) - CG (4)
    		LOW-level CAN bus line
    		Engine switch off
    		3 kΩ or higher
    HINT:
    If the display shows an error message after having connected the cable of the intelligent tester to the DLC3, engine switch on (IG) and operated the tester, there is a problem on either the vehicle side or the tool side.
    1. If communication is normal when the tool is connected to another vehicle, inspect the DLC3 on the original vehicle.
    2. If communication is still impossible when the tool is connected to another vehicle, the problem is probably in the tool itself, so consult the Service Department listed in the tool's instruction manual.
