POWER DOOR LOCK CONTROL SYSTEM - Rear Double Lock Motor LH Circuit |
DESCRIPTION
The rear left side door double lock motor is built into the rear left side door lock assembly.The double door lock ECU receives rear left side door double door lock set/release signals from the main body ECU RH using multiplex communication.The double door lock ECU controls the double lock motor to set/release the double door lock. This ECU applies current from terminal ACTS to terminal ACTR to operate the motor to set the lock. It reverses the direction of the current to operate the motor to release the lock.
WIRING DIAGRAM
INSPECTION PROCEDURE

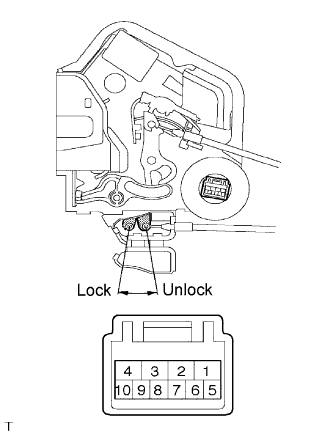

1.INSPECT REAR DOOR LOCK ASSEMBLY LH (DOUBLE LOCK MOTOR) |
Remove the rear door lock assembly LH.
Apply battery voltage and set the door lock motor to the lock position.
- OK:
Measurement Condition
| Specified Condition
|
Battery positive (+) →Terminal 2 Battery negative (-) →Terminal 1
| Lock
|
Apply battery voltage to the door lock and check operation of the double lock motor.
- OK:
Measurement Condition
| Specified Condition
|
Battery positive (+) →Terminal 4 Battery negative (-) →Terminal 3
| Double Locking System is set
|
Battery positive (+) →Terminal 3 Battery negative (-) →Terminal 4
| Double Locking System is unset
|
Check that the doors cannot be unlocked by operating the control cable while the double locking system is set.
- OK:
- The doors cannot be unlocked.
| REPLACE REAR DOOR LOCK ASSEMBLY LH |
|
|

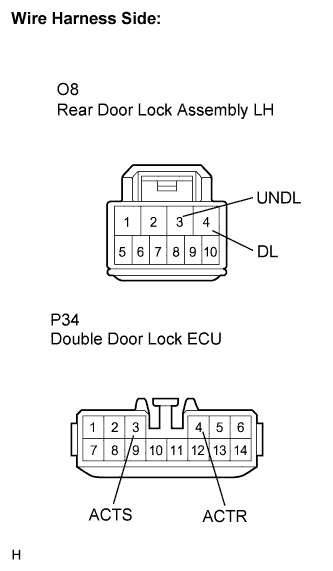

2.CHECK WIRE HARNESS (REAR DOOR LOCK ASSEMBLY LH - DOUBLE DOOR LOCK ECU) |
Disconnect the rear door lock assembly LH connector.
Disconnect the double door lock ECU connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection (Symbols)
| Condition
| Specified Condition
|
O8-4 (DL) - P34-3 (ACTS)
| Always
| Below 1 Ω
|
O8-3 (UNDL) - P34-4 (ACTR)
| Always
| Below 1 Ω
|
O8-4 (DL) - Body ground
| Always
| 10 kΩ or higher
|
O8-3 (UNDL) - Body ground
| Always
| 10 kΩ or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
OK |
|
|
|
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE |
|
