POWER DOOR LOCK CONTROL SYSTEM - Rear Double Lock Position Switch RH Circuit


DESCRIPTION

The rear right side door double lock position switch is built into the rear right side door lock assembly. The switch turns on when the rear right side door double lock is set and turns off when the double lock is released.
The double door lock ECU is connected to the rear right side door lock assembly via terminal DLPR and rear right side door double lock set/released state signals are input to the ECU.
The double door lock ECU applies voltage to terminal DLSR of the double lock position switch via terminal DLPR. When the switch is on (there is continuity between the switch terminals), a set state signal is input to the ECU. When the switch is off (there is no continuity between the switch terminals), a release state signal is input.
The double door lock ECU sends rear right side door double lock set/released state signal to the main body ECU RH using multiplex communication.

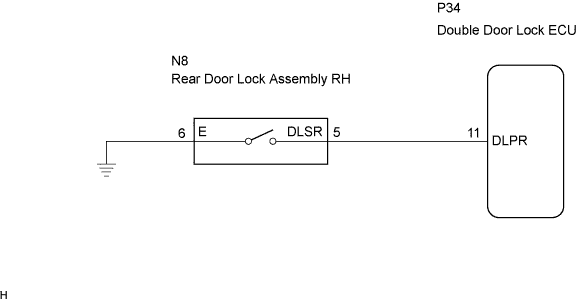

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Rear Double Lock Position Switch Rh Circuit


INSPECTION PROCEDURE

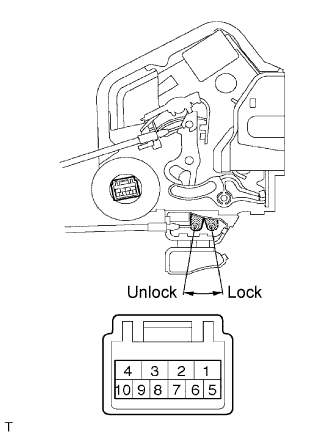

1.INSPECT REAR DOOR LOCK ASSEMBLY RH (DOUBLE LOCK POSITION SWITCH)


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Rear Double Lock Position Switch Rh Circuit

  1. Remove the rear door lock assembly RH.

  1. Apply battery voltage and set the door lock motor to the lock position.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) →Terminal 4
    Battery negative (-) →Terminal 3
    		Lock

  1. Apply battery voltage to the door lock and check operation of the double lock motor.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) →Terminal 2
    Battery negative (-) →Terminal 1
    		Double Locking System is set
    Battery positive (+) →Terminal 1
    Battery negative (-) →Terminal 2
    		Double Locking System is unset

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Double Lock Position
    		Specified Condition
    5 - 6
    		Set
    		Below 1 Ω
    5 - 6
    		Unset
    		10 kΩ or higher


NG
REPLACE REAR DOOR LOCK ASSEMBLY RH
OK


2.CHECK WIRE HARNESS (REAR DOOR LOCK ASSEMBLY RH - DOUBLE DOOR LOCK ECU)


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Rear Double Lock Position Switch Rh Circuit

  1. Disconnect the rear door lock assembly RH connector.

  1. Disconnect the double door lock ECU connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    (Symbols)
    		Condition
    		Specified Condition
    N8-5 (DLSR) - P34-11 (DLPR)
    		Always
    		Below 1 Ω
    N8-5 (DLSR) - Body ground
    		Always
    		10 kΩ or higher
    N8-6 (E) - Body ground
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
