POWER DOOR LOCK CONTROL SYSTEM - Front Passenger Side Double Lock Position Switch Circuit


DESCRIPTION

The front passenger door double lock position switch is built into the front passenger door lock assembly. The switch turns on when the front passenger door double lock is set and turns off when the double lock is released.
The double door lock ECU is connected to the front passenger door lock assembly via terminal DLPP or DLPD and front passenger door double lock set/released state signals are input to the ECU.
The double door lock ECU applies voltage to terminal DLSR of the double lock position switch via terminal DLPP or DLPD. When the switch is on (there is continuity between the switch terminals), a set state signal is input to the ECU. When the switch is off (there is no continuity between the switch terminals), a release state signal is input.
The double door lock ECU sends front passenger door double lock set/released state signal to the main body ECU RH using multiplex communication.

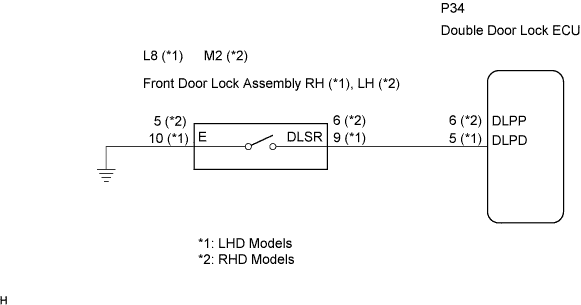

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Front Passenger Side Double Lock Position Switch Circuit


INSPECTION PROCEDURE

1.INSPECT FRONT DOOR LOCK ASSEMBLY (DOUBLE LOCK POSITION SWITCH)


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Front Passenger Side Double Lock Position Switch Circuit

  1. LHD Models:
    Remove the front door lock assembly RH.

    1. Apply battery voltage and set the door lock motor to the lock position.

      OK:
      Measurement Condition
      		Specified Condition
      Battery positive (+) →Terminal 2
      Battery negative (-) →Terminal 1
      		Lock

    2. Apply battery voltage to the door lock and check operation of the double lock motor.

      OK:
      Measurement Condition
      		Specified Condition
      Battery positive (+) →Terminal 4
      Battery negative (-) →Terminal 3
      		Double Locking System is set
      Battery positive (+) →Terminal 3
      Battery negative (-) →Terminal 4
      		Double Locking System is unset

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Tester Connection
      		Double Lock Position
      		Specified Condition
      9 - 10
      		Set
      		Below 1 Ω
      9 - 10
      		Unset
      		10 kΩ or higher


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Front Passenger Side Double Lock Position Switch Circuit

  1. RHD Models:
    Remove the front door lock assembly LH.

    1. Apply battery voltage and set the door lock motor to the lock position.

      OK:
      Measurement Condition
      		Specified Condition
      Battery positive (+) →Terminal 4
      Battery negative (-) →Terminal 3
      		Lock

    2. Apply battery voltage to the door lock and check operation of the double lock motor.

      OK:
      Measurement Condition
      		Specified Condition
      Battery positive (+) →Terminal 2
      Battery negative (-) →Terminal 1
      		Double Locking System is set
      Battery positive (+) →Terminal 1
      Battery negative (-) →Terminal 2
      		Double Locking System is unset

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Tester Connection
      		Double Lock Position
      		Specified Condition
      5 - 6
      		Set
      		Below 1 Ω
      5 - 6
      		Unset
      		10 kΩ or higher


NG
REPLACE FRONT DOOR LOCK ASSEMBLY
OK


2.CHECK WIRE HARNESS (FRONT DOOR LOCK ASSEMBLY - DOUBLE DOOR LOCK ECU)


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Front Passenger Side Double Lock Position Switch Circuit

  1. LHD Models:
    Disconnect the front door lock assembly RH connector.

    1. Disconnect the double door lock ECU connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Tester Connection
      (Symbols)
      		Condition
      		Specified Condition

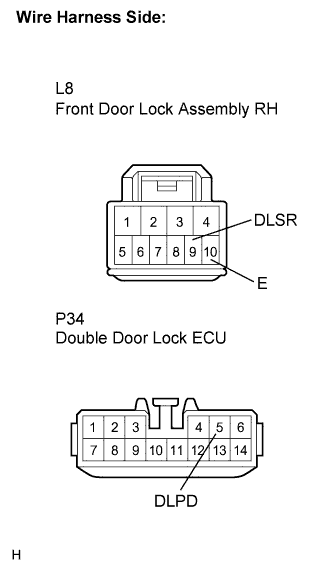

      L8-9 (DLSR) - P34-5 (DLPD)
      		Always
      		Below 1 Ω
      L8-9 (DLSR) - Body ground
      		Always
      		10 kΩ or higher
      L8-10 (E) - Body ground
      		Always
      		Below 1 Ω


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Front Passenger Side Double Lock Position Switch Circuit

  1. RHD Models:
    Disconnect the front door lock assembly LH connector.

    1. Disconnect the double door lock ECU assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance:
      Tester Connection
      (Symbols)
      		Condition
      		Specified Condition

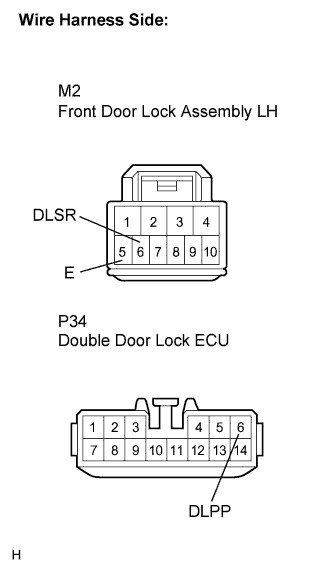

      M2-6 (DLSR) - P34-6 (DLPP)
      		Always
      		Below 1 Ω
      M2-6 (DLSR) - Body ground
      		Always
      		10 kΩ or higher
      M2-5 (E) - Body ground
      		Always
      		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
