Clutch Release Cylinder (For 2Ad-Fhv) Reassembly

Transmission. Lexus Is250, Is220D. Gse20 Ale20
Clutch. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL RELEASE CYLINDER BLEEDER PLUG

  2. INSTALL RELEASE CYLINDER PISTON

Clutch Release Cylinder (For 2Ad-Fhv) -- Reassembly



1. INSTALL RELEASE CYLINDER BLEEDER PLUG

  1. Install the release cylinder bleeder plug to the cylinder body.

    Torque:
    11 N*m{112 kgf*cm, 8 ft.*lbf}

  1. Install the bleeder plug cap to the bleeder plug.



2. INSTALL RELEASE CYLINDER PISTON

  1. Insert the spring into the cylinder body.



    Lexus Is250, Is220D. Gse20 Ale20.Clutch.Clutch System.Clutch Release Cylinder (For 2Ad-Fhv) Reassembly

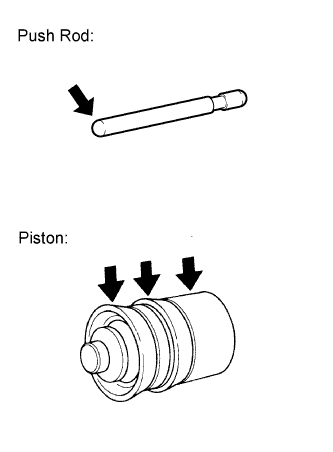

  1. Apply lithium soap base glycol grease to the portions shown in the illustration.

  1. Install the piston to the cylinder body.

    NOTICE:
    Be careful not to damage the inside of the cylinder body.

  1. Install the push rod to the boot.

  1. Install the boot (with push rod) to the cylinder body.
