Clutch Release Cylinder (For 2Ad-Fhv) Removal

Transmission. Lexus Is250, Is220D. Gse20 Ale20
Clutch. Lexus Is250, Is220D. Gse20 Ale20

  1. SEPARATE CLUTCH ACCUMULATOR ASSEMBLY

  2. DISCONNECT CLUTCH LINE

  3. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

Clutch Release Cylinder (For 2Ad-Fhv) -- Removal



1. SEPARATE CLUTCH ACCUMULATOR ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 3 bolts and separate the clutch accumulator assembly.

    NOTICE:
    Use a wire or an equivalent tool keep the clutch accumulator from hanging down by the clutch line.


2. DISCONNECT CLUTCH LINE


    Lexus Is250, Is220D. Gse20 Ale20

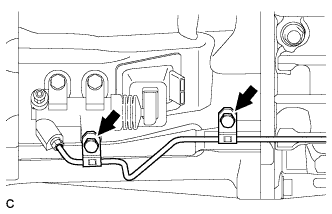

  1. Remove the 2 bolts and separate the clutch line.



    Lexus Is250, Is220D. Gse20 Ale20.Clutch.Clutch System.Clutch Release Cylinder (For 2Ad-Fhv) Removal

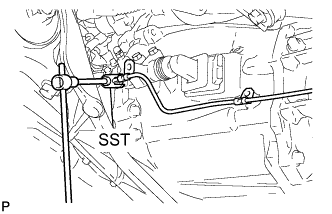

  1. Using SST, disconnect the clutch line.

    SST
    09023-00101
    HINT:
    Use a container to catch the fluid.


3. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY


Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 bolts and clutch release cylinder.
