Clutch Release Cylinder -- Installation |
| 1. TEMPORARILY TIGHTEN CLUTCH RELEASE CYLINDER ASSEMBLY |
Temporarily tighten the clutch release cylinder with the 2 bolts.
 |
| 2. TEMPORARILY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY |
Temporarily tighten the clutch accumulator with the 3 bolts.
 |
| 3. CONNECT CLUTCH LINE |

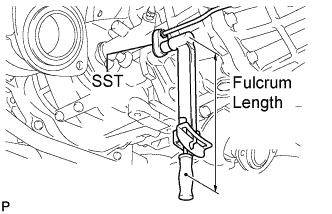

Using SST, connect the clutch line.
- SST
- 09023-00101
- Torque:
- 15 N*m{153 kgf*cm, 11 ft.*lbf}
- HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
 |

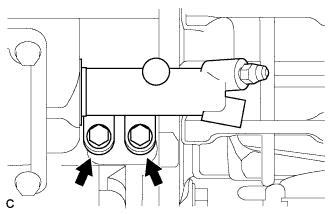

| 4. FULLY TIGHTEN CLUTCH RELEASE CYLINDER ASSEMBLY |
Fully tighten the clutch release cylinder with the 2 bolts.
- Torque:
- 12 N*m{120 kgf*cm, 9 ft.*lbf}
 |

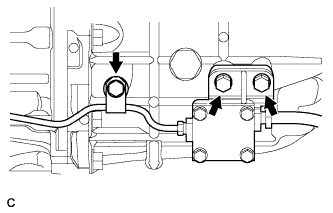

| 5. FULLY TIGHTEN CLUTCH ACCUMULATOR ASSEMBLY |
Fully tighten the clutch accumulator with the 3 bolts.
- Torque:
- 12 N*m{120 kgf*cm, 9 ft.*lbf}
|
| 6. BLEED CLUTCH LINE |
Fill the brake reservoir with the brake fluid and bleed the clutch system (Click here).
- Torque:
- 11 N*m{112 kgf*cm, 8 ft.*lbf}
| 7. CHECK FOR BRAKE FLUID LEAKAGE |
Check for leakage in the clutch system.
| 8. INSPECT BRAKE FLUID LEVEL IN RESERVOIR |
