POWER DOOR LOCK CONTROL SYSTEM - Rear Door UNLOCK Detection Switch RH Circuit


DESCRIPTION

The rear right side door unlock detection switch is built into the rear right side door lock assembly. The switch turns on when the rear right side door is locked and turns off when the door is unlocked.
The main body ECU RH is connected to the rear right side door lock assembly via terminal LSWR and rear right side door lock/unlock state signals are input to the ECU.
The main body ECU RH applies voltage to the door unlock detection switch via terminal LSWR. When the door unlock detection switch is on (there is continuity between the switch terminals), a lock state signal is input to the ECU. When the switch is off (there is no continuity between the switch terminals), an unlock state signal is input.

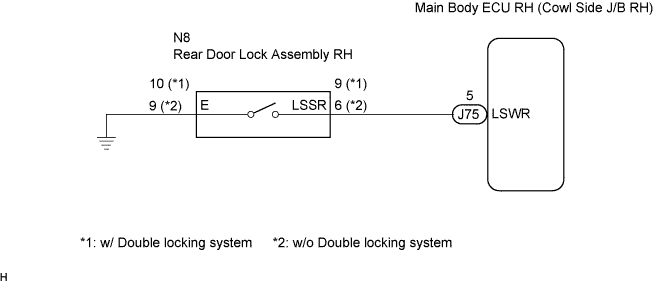

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Rear Door Unlock Detection Switch Rh Circuit


INSPECTION PROCEDURE

1.READ VALUE OF DATA LIST (UNLOCK DETECTION SWITCH)

  1. Check the DATA LIST to ensure proper function of the door unlock detection switch.

    BODY (Main Body ECU):
    Item
    		Measurement Item /
    Display (Range)
    		Normal Condition
    		Diagnostic Note
    Rear Lock Position SW
    		Rear door lock position switch signal
    /ON or OFF
    		ON: Rear door lock is in UNLOCK position
    OFF: Rear door lock is in LOCK position
    		-
    OK:
    The display is as specified in the normal condition column.


NG
Go to step 2
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

2.INSPECT REAR DOOR LOCK ASSEMBLY (UNLOCK DETECTION SWITCH)

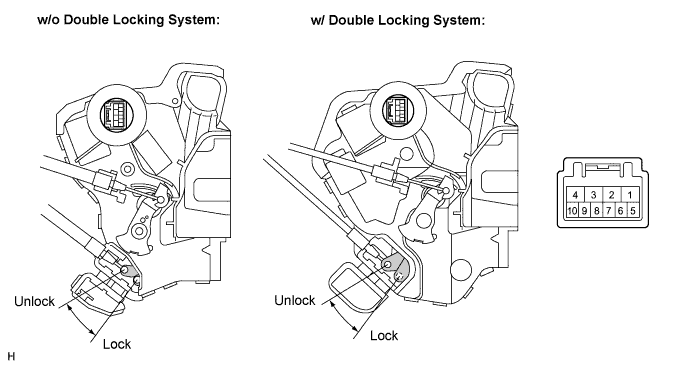

  1. Remove the rear door lock assembly RH.


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Rear Door Unlock Detection Switch Rh Circuit

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Measurement Condition
    		Door Lock Condition
    		(Specified Condition)
    9 - 10 (*1)
    		Battery positive (+) → Terminal 4
    Battery negative (-) → Terminal 1
    		Lock
    		10 kΩ or higher
    9 - 10 (*1)
    		Battery positive (+) → Terminal 1
    Battery negative (-) → Terminal 4
    		Unlock
    		Below 1 Ω
    6 - 9 (*2)
    		Battery positive (+) → Terminal 4
    Battery negative (-) → Terminal 1
    		Lock
    		10 kΩ or higher
    6 - 9 (*2)
    		Battery positive (+) → Terminal 1
    Battery negative (-) → Terminal 4
    		Unlock
    		Below 1 Ω
    *1: w/ Double locking system
    *2: w/o Double locking system


NG
REPLACE REAR DOOR LOCK ASSEMBLY
OK


3.CHECK WIRE HARNESS (REAR DOOR LOCK ASSEMBLY - MAIN BODY ECU RH)


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System Rear Door Unlock Detection Switch Rh Circuit

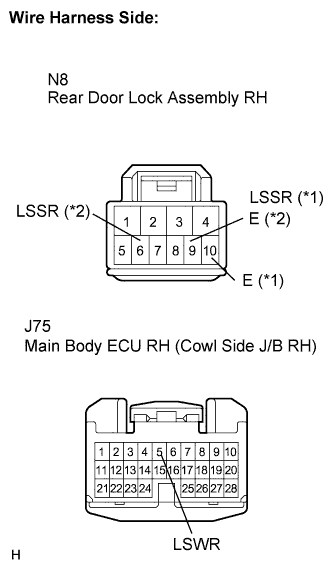

  1. Disconnect the rear door lock assembly RH connector.

  1. Disconnect the ECU (cowl side J/B RH) connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    (Symbols)
    		Condition
    		Specified Condition
    N8-9 (LSSR)- J75-5 (LSWR) (*1)
    		Always
    		Below 1 Ω
    N8-10 (E) - Body ground (*1)
    		Always
    		Below 1 Ω
    N8-6 (LSSR)- J75-5 (LSWR) (*2)
    		Always
    		Below 1 Ω
    N8-9 (E) - Body ground (*2)
    		Always
    		Below 1 Ω
    *1: w/ Double locking system
    *2: w/o Double locking system


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE MAIN BODY ECU RH (COWL SIDE J/B RH)
