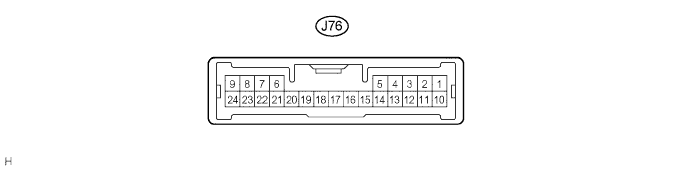

Symbols (Terminal No.)
| Wiring Color
| Terminal Description
| Condition
| Specification
|
+B1 (J50-1) - GND1 (J50-10)
| Y - W-B
| Battery
| Always
| 10 to 14 V
|
ACC (J50-2) - GND1 (J50-10)
| O - W-B
| Accessory (ON)
| Turn engine switch off
| Below 1 V
|
ACC (J50-2) - GND1 (J50-10)
| O - W-B
| Accessory (ON)
| Turn engine switch on (ACC or IG)
| 10 to 14 V
|
IG (J50-3) - GND1 (J50-10)
| B - W-B
| Ignition (ON)
| Turn engine switch off
| Below 1 V
|
IG (J50-3) - GND1 (J50-10)
| B - W-B
| Ignition (ON)
| Turn engine switch on (IG)
| 10 to 14 V
|
TC (J50-7) - GND1 (J50-10)
| V - W-B
| Diagnosis ON signal
| Turn engine switch on (IG)
| 9 to 14 V
|
GND1 (J50-10) - Body ground
| W-B - Body ground
| Ground
| Always
| Below 1 V
|
ILL- (J50-11) - GND1 (J50-10)
| W - W-B
| Illumination signal
| Turn light control switch OFF
| Below 1 V
|
ILL- (J50-11) - GND1 (J50-10)
| W - W-B
| Illumination signal
| Turn light control switch ON
| 10 to 14 V
|
ILL+ (J50-12) - GND1 (J50-10)
| G - W-B
| Illumination signal
| Turn light control switch OFF
| Below 1 V
|
ILL+ (J50-12) - GND1 (J50-10)
| G - W-B
| Illumination signal
| Turn light control switch ON
| 10 to 14 V
|
REV (J50-13) - GND1 (J50-10)
| L - W-B
| Reverse signal
| See "Vehicle Signal Check" Mode (Click here)
| -
|
SPD (J50-14) - GND1 (J50-10)
| P - W-B
| Speed signal from combination meter
| See "Vehicle Signal Check" Mode (Click here )
| -
|
CMP- (J50-15) - CMP+ (J50-16)
| W - B
| RDS-TMC signal
| RDS-TMC function is ON
| Pulse generation
(100 mVrms +- 5dB)
|
SLD (J50-17) - Body ground
| Shielded - Body ground
| Shielded ground
| Always
| Below 1 V
|
PKB (J50-23) - GND1 (J50-10)
| R - W-B
| Parking brake signal
| See "Vehicle Signal Check" Mode (Click here)
| -
|
TX2- (J51-3) - GND1 (J50-10)
| LG - W-B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
TX2+ (J51-4) - GND1 (J50-10)
| P - W-B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
TSW- (J51-5) - GND1 (J50-10)
| W-B - W-B
| Telephone relation switch signal
| Always
| Below 1 V
|
MACC (J51-9) - GND1 (J50-10)
| V - W-B
| Microphone AMP power supply
| Turn engine switch off
| Below 1 V
|
MACC (J51-9) - GND1 (J50-10)
| V - W-B
| Microphone AMP power supply
| Turn engine switch on (IG)
| 5 V
|
MIN- (J51-10) - GND1 (J50-10)
| BR - W-B
| Microphone voice signal
| See "Microphone & Voice Recognition Check" (Click here)
| -
|
MIN+ (J51-11) - GND1 (J50-10)
| Y - W-B
| Microphone voice signal
| See "Microphone & Voice Recognition Check" (Click here)
| -
|
SGND (J51-12) - GND1 (J50-10)
| W-B - W-B
| Signal ground
| Always
| Below 1 V
|
TX1- (J51-15) - GND1 (J50-10)
| R - W-B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
TX1+ (J51-16) - GND1 (J50-10)
| BR - W-B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
TX3- (J51-17) - GND1 (J50-10)
| O - W-B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
TX3+ (J51-18) - GND1 (J51-10)
| SB - W-B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
IVO- (J51-21) - GND1 (J50-10)
| BR - W-B
| Voice guidance signal
| Voice guidance is provided
| A waveform synchronized with sounds is output
|
IVO+ (J51-22) - GND1 (J51-10)
| Y - W-B
| Voice guidance signal
| Voice guidance is provided
| A waveform synchronized with sounds is output
|
SLD (J51-23) - GND1 (J50-10)
| Shielded - W-B
| Shielded ground
| Always
| Below 1 V
|
NTSC (J52-1) - GND1 (J50-10)
| R - W-B
| DVD image signal
| DVD is played on radio receiver
| Pulse generation (Refer to waveform 2)
|
SGD1 (J52-4) - GND1 (J50-10)
| G - W-B
| Signal ground
| Always
| Below 1 V
|
SGND (J52-5) - Body ground
| Shielded - Body ground
| Shielded ground
| Always
| Below 1 V
|
TX4- (p1-1) - GND2 (p1-6)
| W-B - B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
TX4+ (p1-2) - GND2 (p1-6)
| W-R - B
| AVC-LAN communication signal
| Turn engine switch on (ACC)
| 2 to 3 V
|
SGND (p1-3) - GND2 (p1-61)
| Shielded - B
| Shielded ground
| Always
| Below 1 V
|
MCO- (p1-4) - GND2 (p1-6)
| L - B
| Microphone voice signal
| See "Microphone & Voice Recognition Check" (Click here)
| -
|
MCO+ (p1-5) - GND2 (p1-6)
| R - B
| Microphone voice signal
| See "Microphone & Voice Recognition Check" (Click here)
| -
|
GND2 (p1-6) - Body ground
| B - Body ground
| Ground
| Always
| Below 1 V
|
ACC2 (p1-7) - GND2 (p1-6)
| O - B
| Accessory (ON)
| Turn engine switch off
| Below 1 V
|
ACC2 (p1-7) - GND2 (p1-6)
| O - B
| Accessory (ON)
| Turn engine switch on (ACC)
| 10 to 14 V
|
+B (p1-8) - GND2 (p1-6)
| R - B
| Battery
| Always
| 10 to 14 V
|
SI- (p1-10) - GND2 (p1-6)
| L - B
| Voice guidance signal
| Voice guidance is provided
| A waveform synchronized with sounds is output
|
SI+ (p1-11) - GND2 (p1-6)
| R - B
| Voice guidance signal
| Voice guidance is provided
| A waveform synchronized with sounds is output
|
CMO- (p1-12) - CMO+ (p1-13)
| L - R
| RDS-TMC signal
| See "RDS-TMC Information" Mode (Click here)
| -
|
REV2 (p1-15) - GND2 (p1-6)
| GR - B
| Reverse signal
| See "Vehicle Sensors" Mode (Click here)
| -
|
SPD2 (p1-16) - GND2 (p1-6)
| W - B
| Speed signal
| See "Vehicle Sensors" Mode (Click here)
| -
|

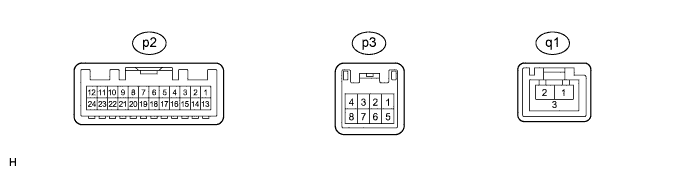

GVI+ (q1-1) - GND2 (p1-6) (*1)
| -
| Digital image signal
| Navigation display is on
| Pulse generation
|
GVI- (q1-2) - GND2 (p1-6) (*1)
| -
| Digital image signal
| Navigation display is on
| Pulse generation
|
GVG1 (q1-3) - Body ground (*1)
| -
| Ground
| Always
| Below 1 V
|
GVI+ (w1-1) - GND2 (p1-6) (*2)
| -
| Digital image signal
| Navigation display is on
| Pulse generation
|
GVI- (w1-2) - GND2 (p1-6) (*2)
| -
| Digital image signal
| Navigation display is on
| Pulse generation
|
GVG1 (w1-3) - Body ground (*2)
| -
| Ground
| Always
| Below 1 V
|
