Clutch Master Cylinder Installation
Clutch. Lexus Is250, Is220D. Gse20 Ale20
INSTALL CLUTCH MASTER CYLINDER ASSEMBLY (for LHD)
INSTALL CLUTCH MASTER CYLINDER ASSEMBLY (for RHD)
INSTALL CLUTCH MASTER CYLINDER PUSH ROD CLEVIS PIN
INSTALL CLUTCH PEDAL SUPPORT SUB-ASSEMBLY (for LHD)
INSTALL CLUTCH PEDAL SUPPORT SUB-ASSEMBLY (for RHD)
CONNECT CLUTCH LINE
CONNECT CLUTCH RESERVOIR TUBE (for LHD)
CONNECT CLUTCH RESERVOIR TUBE (for RHD)
INSTALL WIRE HARNESS (for LHD)
INSTALL WIRE HARNESS (for RHD)
BLEED CLUTCH LINE
CHECK FOR BRAKE FLUID LEAKAGE
INSPECT AND ADJUST CLUTCH PEDAL HEIGHT
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
INSTALL SIDE INSTRUMENT PANEL
INSTALL FRONT DOOR OPENING TRIM COVER LH
INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination)
INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT BRAKE FLUID LEVEL IN RESERVOIR
PERFORM INITIALIZATION
INSPECT SRS WARNING LIGHT
Clutch Master Cylinder -- Installation |
- HINT:
- Use the same procedures for the RHD and LHD.
- The procedures listed below are for the LHD.
1. INSTALL CLUTCH MASTER CYLINDER ASSEMBLY (for LHD) |

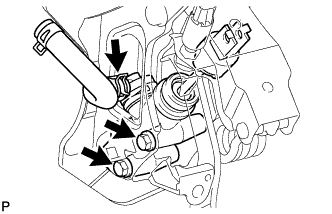

Install the clutch master cylinder assembly with the 2 bolts.
- Torque:
- 12 N*m{120 kgf*cm, 9 ft.*lbf}
Connect the clutch reservoir tube.
2. INSTALL CLUTCH MASTER CYLINDER ASSEMBLY (for RHD) |
Install the clutch master cylinder assembly with the 2 bolts.
- Torque:
- 12 N*m{120 kgf*cm, 9 ft.*lbf}
Connect the clutch reservoir tube.
3. INSTALL CLUTCH MASTER CYLINDER PUSH ROD CLEVIS PIN |
Apply MP grease to the contact surface of the pin and a clevis bushing.
Connect the clevis to the clutch pedal with the pin.
- HINT:
- Install the pin from the left side of the vehicle.
Install the new clip to the pin.
4. INSTALL CLUTCH PEDAL SUPPORT SUB-ASSEMBLY (for LHD) |
Install the clutch pedal support with the 2 nuts and bolt.
- Torque:
- 19 N*m{190 kgf*cm, 14 ft.*lbf}
5. INSTALL CLUTCH PEDAL SUPPORT SUB-ASSEMBLY (for RHD) |
Install the clutch pedal support with the 2 nuts and bolt.
- Torque:
- 24 N*m{241 kgf*cm, 17 ft.*lbf}
Using SST, connect the clutch line.
- SST
- 09023-00101
- Torque:
- 15 N*m{153 kgf*cm, 11 ft.*lbf}
- NOTICE:
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
7. CONNECT CLUTCH RESERVOIR TUBE (for LHD) |
Connect the clutch reservoir tube.
8. CONNECT CLUTCH RESERVOIR TUBE (for RHD) |
Connect the clutch reservoir tube.
9. INSTALL WIRE HARNESS (for LHD) |
Connect the 3 connectors and clamp.
10. INSTALL WIRE HARNESS (for RHD) |
Connect the 2 connectors and clamp.
Fill the brake reservoir with the brake fluid and bleed the clutch system (Click here).
- Torque:
- 11 N*m{112 kgf*cm, 8 ft.*lbf}
12. CHECK FOR BRAKE FLUID LEAKAGE |
- HINT:
- Check for leakage in the clutch system.
13. INSPECT AND ADJUST CLUTCH PEDAL HEIGHT |
(Click here)
14. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY |
Connect the connector.
- NOTICE:
- When handling the airbag connector, take care not to damage the airbag wire harness.
Install the driver side knee airbag assembly with the 4 bolts.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
15. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
Connect the connectors.
Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.
16. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Connect the connectors.
Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in the illustration.
Engage the 2 claws.
Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <E>.
17. INSTALL SIDE INSTRUMENT PANEL |
Engage the 5 claws and 3 clips, and then install the side instrument panel LH.
18. INSTALL FRONT DOOR OPENING TRIM COVER LH |
Engage the 6 claws and install the front door opening trim cover LH.
19. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination) |
Engage the 4 clips.
Engage the 7 claws, and install the front door scuff plate LH.
20. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination) |
Connect the connector.
Engage the 4 clips.
Engage the 7 claws, and install the front door scuff plate LH.
21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
22. INSPECT BRAKE FLUID LEVEL IN RESERVOIR |
23. PERFORM INITIALIZATION |
Some systems need initialization after reconnecting the negative battery terminal (Click here).
24. INSPECT SRS WARNING LIGHT |
(Click here)
