POWER DOOR LOCK CONTROL SYSTEM - Driver Side Door Key Lock and Unlock Switch Circuit


DESCRIPTION

The driver's door key lock and unlock switch is built into the driver's door lock assembly.
When the driver's door key cylinder is turned to lock all the doors by key, there is continuity between terminals L and E of the key lock and unlock switch. When the cylinder is turned to unlock the door(s), there is continuity between terminals UL and E.
Terminals KL and KUL of the multiplex network master switch assembly are connected to the door lock assembly, and door lock/unlock request signals (by key) are input to the multiplex network master switch assembly.
The multiplex network master switch assembly constantly applies voltage to terminal L of the driver's door lock assembly via terminal KL. When the driver's door key cylinder is turned to lock all the doors by key, current flows from terminal KL to terminal L. The multiplex network master switch assembly determines that this is door lock request signal input and sends a door lock signal to the main body ECU RH using multiplex communication.
The multiplex network master switch assembly also applies constant voltage to terminal UL of the door lock assembly via terminal KUL. When the door key cylinder is turned in the direction to unlock the door(s) by key, current flows from terminal KUL to terminal UL. The multiplex network master switch assembly determines that this is door unlock request signal input and sends a door unlock signal to the main body ECU RH using multiplex communication.

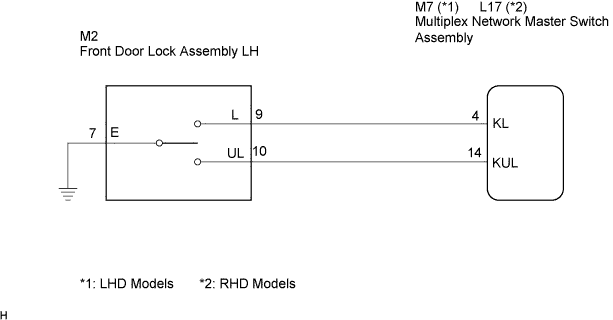

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System  Driver Side Door Key Lock And Unlock Switch Circuit


INSPECTION PROCEDURE

1.READ VALUE OF DATA LIST
  1. Check the DATA LIST to ensure proper function of the door unlock detection switch.

    MASTER SW (Multiplex Network Master Switch Assembly):
    Item
    Measurement Item /
    Display (Range)
    Normal Condition
    Diagnostic Note
    Door Key Linked Lock SW
    Driver door lock/unlock switch lock signal (key-linked lock switch)
    /ON or OFF
    ON: Driver side door key cylinder is turned to LOCK
    OFF: Driver side door key cylinder is not turned to LOCK
    -
    Door Key Linked Unlock SW
    Driver door lock/unlock switch unlock signal (key-linked unlock switch)
    /ON or OFF
    ON: Driver side door key cylinder is turned to UNLOCK
    OFF: Driver side door key cylinder is not turned to UNLOCK
    -
    OK:
    The display is as specified in the normal condition column.


NG
Go to step 2
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

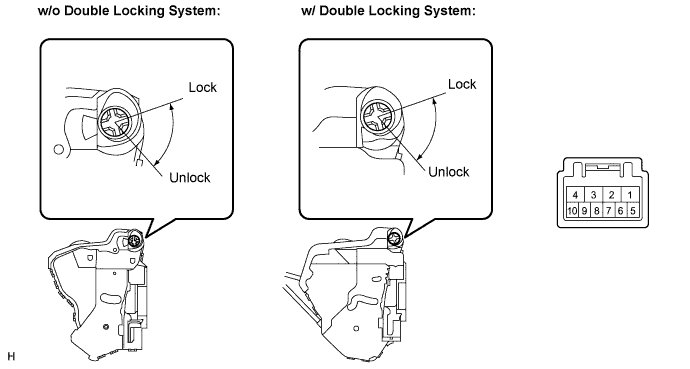

2.INSPECT FRONT DOOR LOCK ASSEMBLY (DOOR KEY LOCK AND UNLOCK SWITCH)


  1. Remove the front door lock assembly.


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System  Driver Side Door Key Lock And Unlock Switch Circuit

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    Condition
    Specified Condition
    7 - 9
    ON (Door lock set to LOCK)
    Below 1 Ω
    7 - 9, 7 - 10
    OFF (Free)
    10 kΩ or higher
    7 - 10
    ON (Door lock set to UNLOCK)
    Below 1 Ω


NG
REPLACE FRONT DOOR LOCK ASSEMBLY
OK

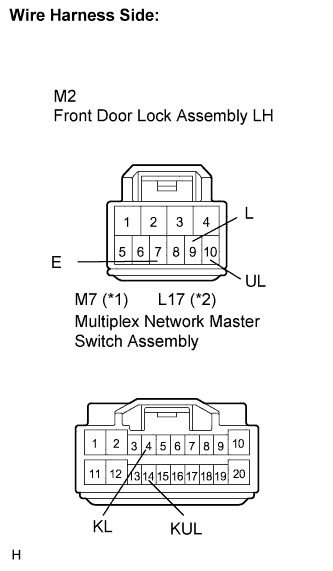

3.CHECK WIRE HARNESS (FRONT DOOR LOCK ASSEMBLY - MULTIPLEX NETWORK MASTER SWITCH)


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Power Door Lock Control System  Driver Side Door Key Lock And Unlock Switch Circuit
  1. Disconnect the front door lock assembly connector.

  1. Disconnect the multiplex network master switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    (Symbols)
    Condition
    Specified Condition
    M2-9 (L) - M7-4 (KL) (*1)
    Always
    Below 1 Ω
    M2-10 (UL) - M7-14 (KUL) (*1)
    Always
    Below 1 Ω
    M2-9 (L) - L17-4 (KL) (*2)
    Always
    Below 1 Ω
    M2-10 (UL) - L17-14 (KUL) (*2)
    Always
    Below 1 Ω
    M2-7 (E) - Body ground
    Always
    Below 1 Ω
    M2-9 (L) - Body ground
    Always
    10 kΩ or higher
    M2-10 (UL) - Body ground
    Always
    10 kΩ or higher
    *1: LHD Models
    *2: RHD Models


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
