DTC U1102 Lost Communication with Radar Sensor |
DESCRIPTION
The millimeter wave radar sensor and distance control ECU (cruise control ECU) transmit the data for general vehicle control and diagnosis function along the communication line. The distance control ECU (cruise control ECU) determines the curve radius information based on signals from the steering wheel and yaw rate sensor. The distance control ECU (cruise control ECU) transmits the current vehicle speed and curve radius information to the millimeter wave radar sensor.DTC No.
| DTC Detection Condition
| Trouble Area
|
U1102
| The ECM detects a communication error signal (from the distance control ECU (cruise control ECU) to the millimeter wave radar sensor) for 0.15 sec. or more while the dynamic radar cruise control is in operation
| - Communication circuit
- Millimeter wave radar sensor
- Distance control ECU (Cruise control ECU)
|

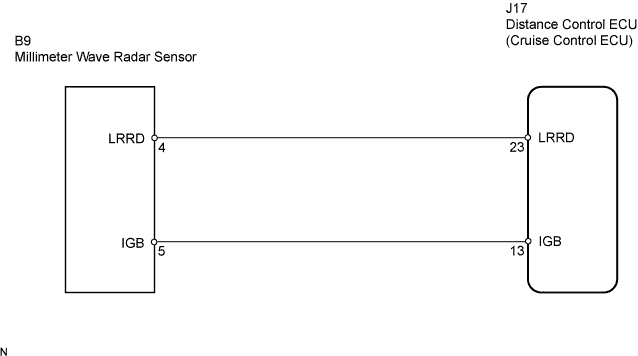

WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- When the distance control ECU is replaced with a new one, initialization must be performed (Click here).
- When the millimeter wave radar sensor is replaced with a new one, adjustment of the radar sensor beam axis must be performed (Click here).

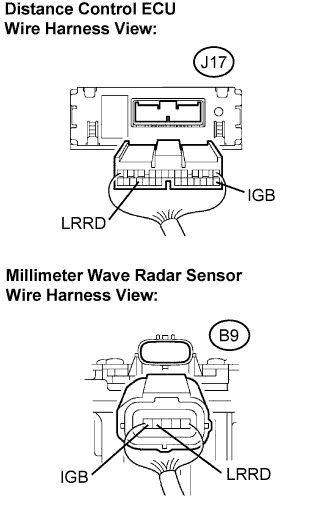

1.CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - MILLIMETER WAVE RADAR SENSOR) |
Disconnect the distance control ECU and millimeter wave radar sensor connectors.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
J17-23 (LRRD) - B9-4 (LRRD)
| Always
| Below 1 Ω
|
J17-13 (IGB) - B9-5 (IGB)
| Always
| Below 1 Ω
|
J17-23 (LRRD) - Body ground
| Always
| 10 kΩ or higher
|
J17-13 (IGB) - Body ground
| Always
| 10 kΩ or higher
|
| REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|

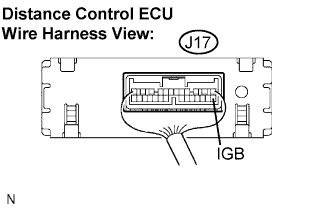

2.CHECK DISTANCE CONTROL ECU |
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
J17-13 (IGB) - Body ground
| Engine switch on (IG)
| 10 to 14 V
|
| REPLACE DISTANCE CONTROL ECU |
|
|

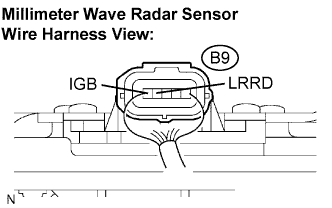

3.CHECK MILLIMETER WAVE RADAR SENSOR |
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Condition
| Specified Condition
|
B9-5 (IGB) - Body ground
| Engine switch on (IG)
| 10 to 14 V
|

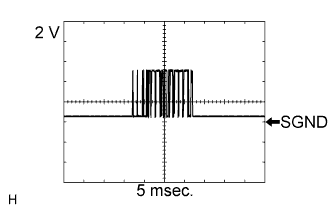

Check the signal waveform between terminal LRRD (B9-4) of the millimeter wave radar sensor and body ground.
- OK:
- A waveform similar to that in the illustration on the left is output.
- HINT:
- Gauge set: 2 V/DIV., 5 msec./DIV.
- Condition: Engine switch on (IG)
| REPLACE MILLIMETER WAVE RADAR SENSOR |
|
|
OK |
|
|
|
END (INTERMITTENT PROBLEM IS PRESENT) |
|
