Cooling Fan Motor On-Vehicle Inspection

Engine. Lexus Is250, Is220D. Gse20 Ale20
4Gr-Fse Cooling. Lexus Is250, Is220D. Gse20 Ale20

  1. CHECK NO. 1 COOLING FAN MOTOR

  2. CHECK NO. 2 COOLING FAN MOTOR

Cooling Fan Motor -- On-Vehicle Inspection



1. CHECK NO. 1 COOLING FAN MOTOR


Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Cooling.Cooling System.Cooling Fan Motor On-Vehicle Inspection

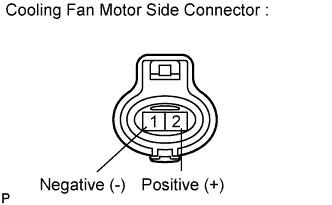

  1. Check that the motor turns smoothly when the battery is connected to the fan motor connector.

  1. Measure the current while the motor is turning.

    Standard current:
    5.3 to 8.3 A at 20°C (68°F)
    If the result is not as specified, replace the No.1 cooling fan motor.


2. CHECK NO. 2 COOLING FAN MOTOR


Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Cooling.Cooling System.Cooling Fan Motor On-Vehicle Inspection

  1. Check that the motor turns smoothly when the battery is connected to the fan motor connector.

  1. Measure the current while the motor is turning.

    Standard current:
    5.3 to 8.3 A at 20°C (68°F)
    If the result is not as specified, replace the No.2 cooling fan motor.
