DTC B1289 Passenger Seat ECU Communication Stop


SYSTEM DESCRIPTION

This DTC is detected when communication between the position control ECU and switch (passenger ECU) and gateway ECU stops for more than 10 seconds.

DTC No.
DTC Detection Condition
Trouble Area
B1289
Position control ECU and switch (passenger seat ECU) communication stops
  1. Position control ECU and switch (passenger seat ECU)
  2. Wire harness

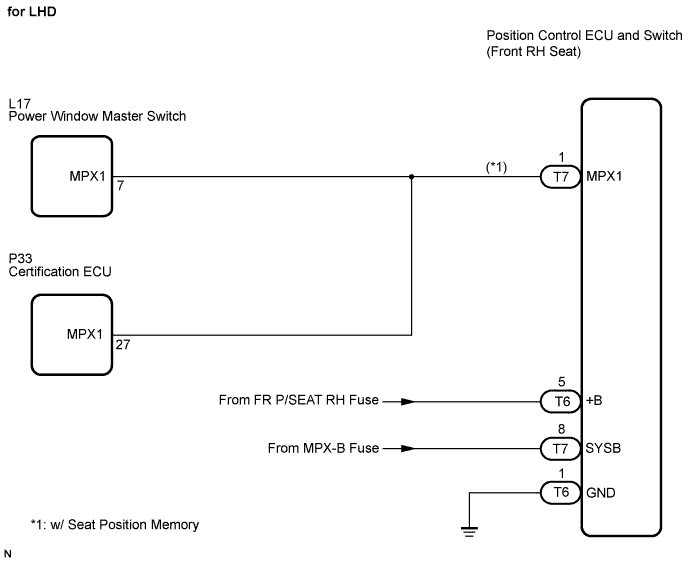

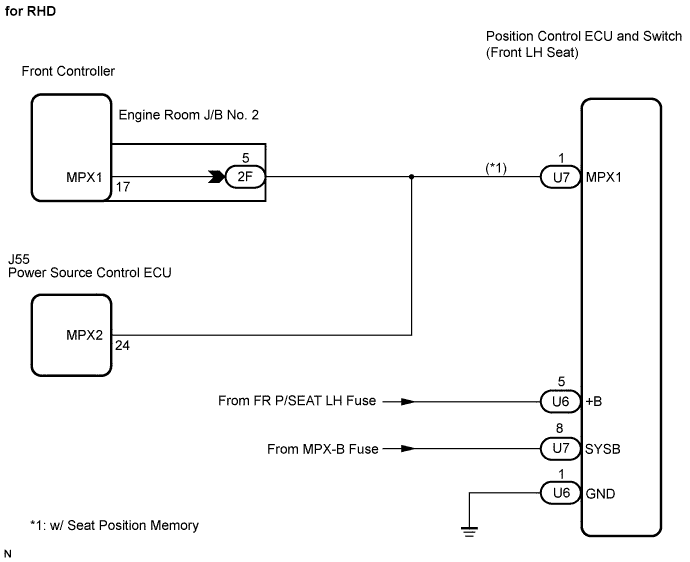

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Multiplex Communication.Multiplex Communication System. Dtc B1289 Passenger Seat Ecu Communication Stop


Lexus Is250, Is220D. Gse20 Ale20.Multiplex Communication.Multiplex Communication System. Dtc B1289 Passenger Seat Ecu Communication Stop


INSPECTION PROCEDURE

HINT:
When "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1289, repair the "+B or GND short malfunction of communication bus" DTCs first.
1.INSPECT FUSE (FR P/SEAT RH(LHD), FR P/SEAT LH (RHD), MPX-B)

  1. Remove the FR P/SEAT RH fuse from the cowl side J/B RH (for LHD).

  1. Remove the FR P/SEAT LH fuse from the cowl side J/B LH (for RHD).

  1. Remove the MPX-B fuse from engine room J/B No. 1.

  1. Measure the resistance of the fuse.

    Standard resistance:
    Below 1 Ω


NG
REPLACE FUSE
OK


2.CHECK WIRE HARNESS (POSITION CONTROL ECU AND SWITCH - BATTERY AND BODY GROUND)

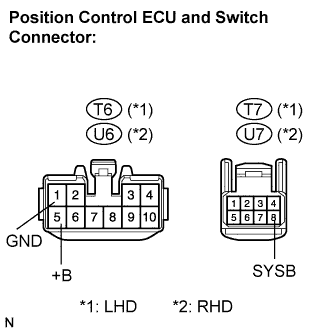

  1. Disconnect the T6 and T7 ECU connectors (for LHD).



    Lexus Is250, Is220D. Gse20 Ale20.Multiplex Communication.Multiplex Communication System. Dtc B1289 Passenger Seat Ecu Communication Stop

  1. Disconnect the U6 and U7 ECU connectors (for RHD).

  1. Measure the voltage and resistance of the wire harness side connector.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Condition
    *1+B (T6-5) - Body ground
    *2+B (U6-5) - Body ground
    		Always
    		10 to 14 V
    *1SYSB (T7-8) - Body ground
    *2SYSB (U7-8) - Body ground
    		Always
    		10 to 14 V
    Standard resistance:
    Tester Connection
    		Specified Condition
    *1GND (T6-1) - Body ground
    *2GND (U6-1) - Body ground
    		Below 1 Ω
    HINT:
    1. *1: LHD
    2. *2: RHD


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.CHECK RESISTANCE OF COMMUNICATION LINE

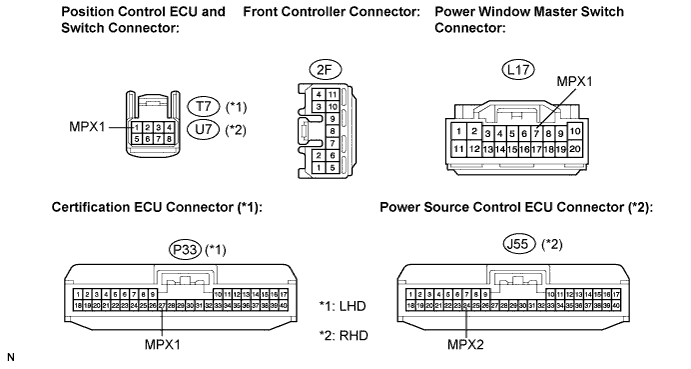

  1. Disconnect the T7, RJ and P33 ECU connectors (for LHD).



  1. Disconnect the U7, 2F and J55 ECU connectors (for RHD).


    Lexus Is250, Is220D. Gse20 Ale20.Multiplex Communication.Multiplex Communication System. Dtc B1289 Passenger Seat Ecu Communication Stop

  1. Measure the resistance between the specified terminals on the wire harness side connectors.

    Standard resistance:
    Tester Connection
    		Specified Condition
    *1MPX1 (T7-1) - MPX1 (L17-7)
    *2MPX1 (U7-1) - 2F-5
    		Below 1 Ω
    *1MPX1 (T7-1) - MPX1 (P33-27)
    *2MPX1 (U7-1) - MPX2 (J55-24)
    		Below 1 Ω
    HINT:
    1. *1: LHD
    2. *2: RHD
    Result:
    Result
    		Proceed to
    Both are OK
    		A
    One is OK
    		B
    Both are NG
    		C


B
REPAIR OR REPLACE HARNESS OR CONNECTOR AND REPLACE POSITION CONTROL ECU

C
REPAIR OR REPLACE HARNESS OR CONNECTOR
A

REPLACE POSITION CONTROL ECU AND SWITCH
