Can Communication System (For Lhd) -- Terminals Of Ecu


HINT:
This section describes the standard CAN values for all CAN related components.

CAN J/C (CAN LH J/C, CAN RH J/C)
HINT:
  1. The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the junction connector.
  2. The connectors can be connected to any terminals on the same side.


  1. CAN LH J/C


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu


    Wiring color:
    CAN LH J/C A Side (with Earth Terminal)
    		Code
    		Color (CANH Side)
    		Color (CANL Side)
    Steering angle sensor
    		J1
    		P
    		W
    ECM
    		J2
    		B
    		W
    Seat belt control ECU
    		J3
    		V
    		W
    Center airbag sensor
    		J4
    		R
    		W

    Wiring color:
    CAN LH J/C B Side (without Earth Terminal)
    		Code
    		Color (CANH Side)
    		Color (CANL Side)
    Yaw rate sensor
    		J5
    		P
    		W
    Skid control ECU
    		J6
    		R
    		W
    CAN main bus line (bus line connecting CAN LH J/C and CAN RH J/C)
    		J7
    		B
    		W
    DLC3
    		J8
    		G
    		W
    Distance control ECU
    		J9
    		GR
    		W


  2. CAN RH J/C


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu


    Wiring color:
    CAN RH J/C A Side (with Earth Terminal)
    		Code
    		Color (CANH Side)
    		Color (CANL Side)
    CAN main bus line (bus line connecting CAN RH J/C and CAN LH J/C)
    		J81
    		B
    		W
    Power steering ECU
    		J82
    		P
    		W
    Television camera ECU
    		J94
    		L
    		W

    Wiring color:
    CAN RH J/C B Side (without Earth Terminal)
    		Code
    		Color (CANH Side)
    		Color (CANL Side)
    Gateway ECU
    		J84
    		B
    		W


    3. Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  3. The terminals on connectors for the CAN J/C

    Terminal
    		Terminal symbol
    1
    		CANH
    2
    		CANL


  4. Wiring diagram for identifying CAN J/C connectors.


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

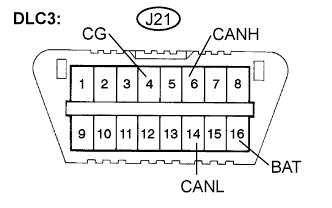

DLC3


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    J21-6 (CANH) - J21-14 (CANL)
    		G - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    J21-6 (CANH) - J21-4 (CG)
    		G - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J21-14 (CANL) - J21-4 (CG)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J21-6 (CANH) - J21-16 (BAT)
    		G - L
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    J21-14 (CANL) - J21-16 (BAT)
    		W - L
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

SKID CONTROL ECU WITH ACTUATOR (WITHOUT VDIM)


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    A14-11 (CANH) - A14-25 (CANL)
    		B - R
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    A14-11 (CANH) - A14-32 (GND1)
    		B - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    A14-25 (CANL) - A14-32 (GND1)
    		R - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    A14-11 (CANH) - A14-31 (+BS)
    		B - BR
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    A14-25 (CANL) - A14-31 (+BS)
    		R - BR
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

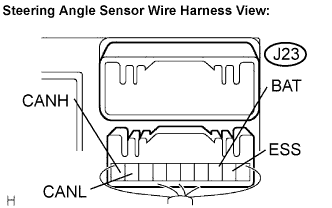

STEERING ANGLE SENSOR


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    J23-10 (CANH) - J23-9 (CANL)
    		P - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    J23-10 (CANH) - J23-2 (ESS)
    		P - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J23-9 (CANL) - J23-2 (ESS)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J23-10 (CANH) - J23-3 (BAT)
    		P - LG
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    J23-9 (CANL) - J23-3 (BAT)
    		W - LG
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

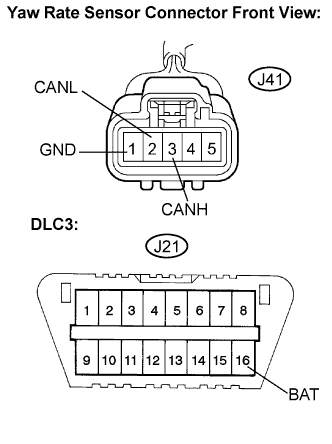

YAW RATE SENSOR


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    J41-3 (CANH) - J41-2 (CANL)
    		P - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    J41-3 (CANH) - J41-1 (GND)
    		P - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J41-2 (CANL) - J41-1 (GND)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J41-3 (CANH) - J21-16 (BAT)
    		P - L
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    J41-2 (CANL) - J21-16 (BAT)
    		W - L
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

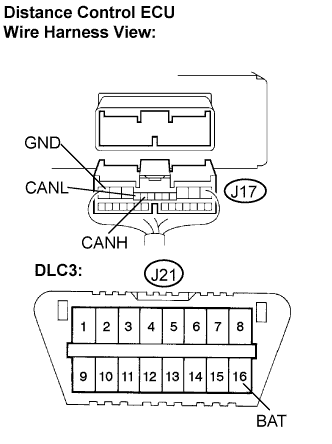

DISTANCE CONTROL ECU


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Condition
    		Specified Condition
    J17-8 (CANH) - J17-9 (CANL)
    		GR - W
    		Engine Switch off
    		54 to 69 Ω
    J17-8 (CANH) - J17-12 (GND)
    		GR - BR
    		Engine Switch off
    		1 kΩ or higher
    J17-9 (CANL) - J17-12 (GND)
    		W - BR
    		Engine Switch off
    		1 kΩ or higher
    J17-8 (CANH) - J21-16 (BAT)
    		GR - L
    		Engine Switch off
    		1 kΩ or higher
    J17-9 (CANL) - J21-16 (BAT)
    		W - L
    		Engine Switch off
    		1 kΩ or higher

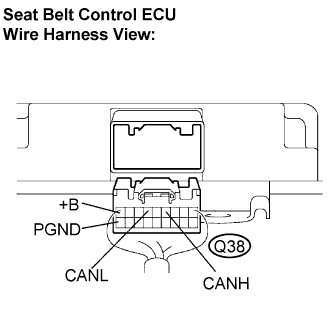

SEAT BELT CONTROL ECU


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    Q38-4 (CANH) - Q38-6 (CANL)
    		B - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    Q38-4 (CANH) - Q38-18 (PGND)
    		B - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    Q38-6 (CANL) - Q38-18 (PGND)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    Q38-4 (CANH) - Q38-9 (+B)
    		B - W
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    Q38-6 (CANL) - Q38-9 (+B)
    		W - W
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

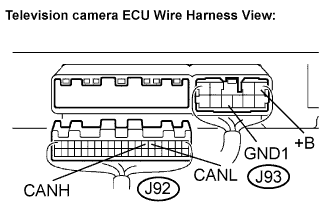

TELEVISION CAMERA ECU


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    J92-7 (CANH) - J92-6 (CANL)
    		L - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    J92-7 (CANH) - J93-8 (GND1)
    		L - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J92-6 (CANL) - J93-8 (GND1)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J92-7 (CANH) - J93-1 (+B)
    		L - R
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    J92-6 (CANL) - J93-1 (+B)
    		W - R
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

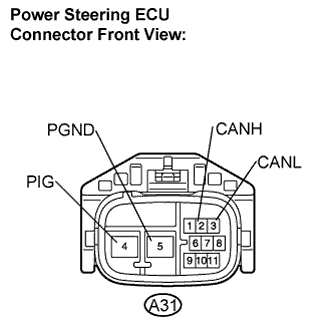

POWER STEERING ECU


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    A31-2 (CANH) - A31-3 (CANL)
    		B - R
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    A31-2 (CANH) - A31-5 (PGND)
    		B - B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    A31-3 (CANL) - A31-5 (PGND)
    		R - B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    A31-2 (CANH) - A31-4 (PIG)
    		B - R
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    A31-3 (CANL) - A31-4 (PIG)
    		R - R
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

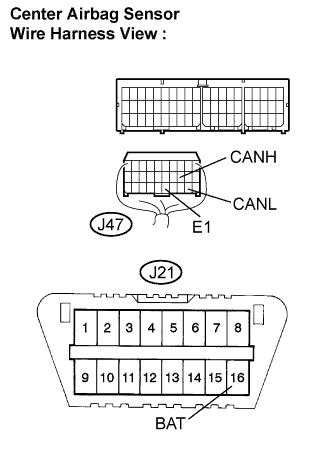

CENTER AIRBAG SENSOR


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    J47-13 (CANH) - J47-22 (CANL)
    		R - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		54 to 69 Ω
    J47-13 (CANH) - J47-25 (E1)
    		R - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J47-22 (CANL) - J47-25 (E1)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J47-13 (CANH) - J21-16 (BAT)
    		R - L
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    J47-22 (CANL) - J21-16 (BAT)
    		W - L
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

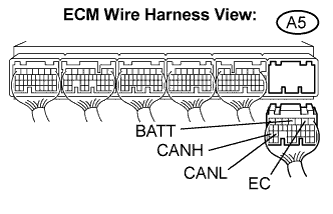

ECM


  1. Measure the resistance according to the value(s) in the table below.


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu


    Standard resistance:

    Terminals
    		Condition
    		Specified Condition
    A5-25 (CANH) - A5-24 (CANL)
    		Engine Switch off
    		108 to 132 Ω


    2. Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  2. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    A5-25 (CANH) - A5-24 (CANL)
    		B - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		108 to 132 Ω
    A5-25 (CANH) - A5-2 (EC)
    		B - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    A5-24 (CANL) - A5-2 (EC)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    A5-25 (CANH) - A5-4 (BATT)
    		B - L
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    A5-24 (CANL) - A5-4 (BATT)
    		W - L
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher

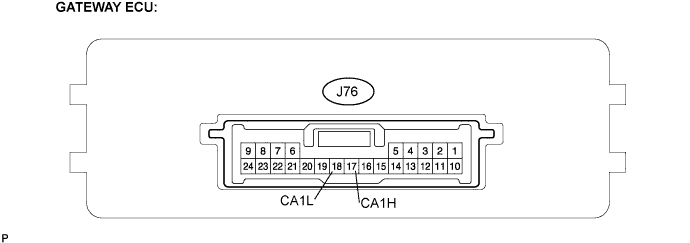

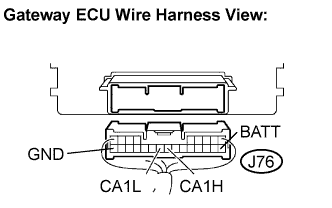

GATEWAY ECU


  1. Measure the resistance according to the value(s) in the table below.


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu


    Standard resistance:

    Terminals
    		Condition
    		Specified Condition
    J76-17 (CA1H) - J76-18 (CA1L)
    		Engine Switch off
    		108 to 132 Ω


    2. Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Terminals Of Ecu

  2. Measure the resistance according to the value(s) in the table below.

    Standard resistance:

    Terminals
    		Wiring Color
    		Terminal Description
    		Condition
    		Specified Condition
    J76-17 (CA1H) - J76-18 (CA1L)
    		B - W
    		HIGH-level CAN bus line - LOW-level CAN bus line
    		Engine Switch off
    		108 to 132 Ω
    J76-17 (CA1H) - J76-24 (GND)
    		B - W-B
    		HIGH-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J76-18 (CA1L) - J76-24 (GND)
    		W - W-B
    		LOW-level CAN bus line - Ground
    		Engine Switch off
    		1 kΩ or higher
    J76-17 (CA1H) - J76-10 (BATT)
    		B - LG
    		HIGH-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
    J76-18 (CA1L) - J76-10 (BATT)
    		W - LG
    		LOW-level CAN bus line - Battery positive
    		Engine Switch off
    		1 kΩ or higher
