Entry And Start System -- Customize Parameters



CUSTOMIZING FUNCTION WITH INTELLIGENT TESTER
HINT:
The items in the table below can be customized.
NOTICE:
  1. When the customer requests a change in a function, first make sure that the function can be customized.
  2. Be sure to make a note of the current setting before customizing.
  3. When troubleshooting a function, first make sure that the function is set to the default setting.
HINT:
The following function's default setting is ON. Part of these functions can be customized.

Entry and start system:
Display (Item)
Default
Contents
Setting
Park Wait Time (Waiting time to permit opening door after locking)
3.0s
Function that sets waiting time to permit opening door after door is locked with entry lock function
1.0s / 2.0s / 3.0s / 5.5s
Trunk Open Mode (Luggage compartment door open mode when vehicle is locked)
ON
Function to permit opening luggage compartment door
ON / OFF
Key Lo-Batt Wrn (Warn when electrical key battery becomes weak)
ON
Function that warns driver that electrical key's battery power is low (Buzzer in the combination meter, multi-information display)
ON / OFF
Door Unlock Mode (Entry door unlock mode)
D-DOOR
Function that makes entry unlock operation available
All / D-DOOR
Ignition Area
ALL
Function that switches the entry ignition detection area
FRONT / ALL
Warning3
ON
Function that switches the warning for carrying the electrical key out of the vehicle when the engine switch is on (IG)
ON / OFF

Entry Unlock Mode Switching Function

  1. To change the vehicle to entry unlock mode switching function, make sure the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 5 seconds.

    1. Driver door unlock default setting
      When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order: driver door mode, one door mode, doors on one side mode, all door mode.
    NOTICE:
    After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
    1. Driver door unlock mode:
      When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
    2. All door unlock mode:
      When the touch sensor is touched, all doors unlock.

  2. The certification ECU receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode.

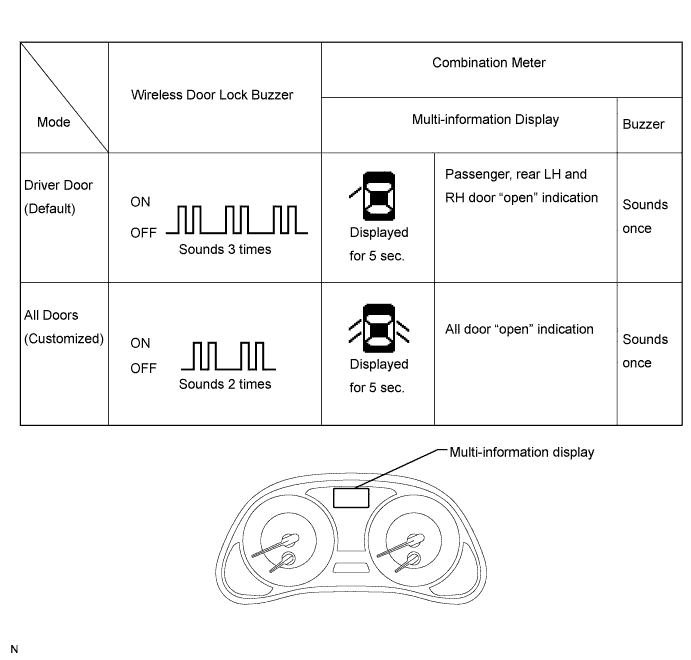

  3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Entry And Start System Customize Parameters

    HINT:
    The function only changes the entry unlock mode of the entry and start system. It does not switch the unlocking of the wireless door lock control.

Electrical Key Cancel
The electrical key cancel operation disables the following functions:
  1. Entry Ignition
  2. Entry Unlock / Lock
  3. Entry Luggage Compartment Open
  4. Electrical key Lock-in Prevention
  5. Warning
  6. Memory Call

  1. The operation procedures are as follows:
    Precondition:
    Engine switch off, driver side door closed and unlocked.

    1. Unlock the driver side door once with the UNLOCK switch of the electrical key.

    2. Open the driver door within 5 seconds.

    3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.

    4. Repeat open → close twice for the driver door within 30 seconds, and open again.
      (Driver door: Open → Close → Open → Close → Open)

    5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.

    6. Repeat open → close once for the driver door within 30 seconds, and open again.
      (Driver door: Open → Close → Open)

    7. Close the driver door within 5 seconds.
      When electrical key cancel is activated, the wireless door lock buzzer sounds twice.
      To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
