CAN COMMUNICATION SYSTEM (for LHD) - Distance Control ECU Communication Stop Mode


DESCRIPTION


Detection Item
Symptom
Trouble Area
Distance Control ECU Communication Stop Mode
  1. "Cruise Control (ACC)" is not displayed on the "Communication Bus Check" screen of the intelligent tester.
  2. Applies to "Distance Control ECU Communication Stop Mode" in the "DTC COMBINATION TABLE"
  1. Power source circuit of the distance control ECU
  2. Distance control ECU branch line or connector
  3. Distance control ECU
HINT:
"Cruise Control (ACC)" refers to the circuit that includes the distance control ECU.

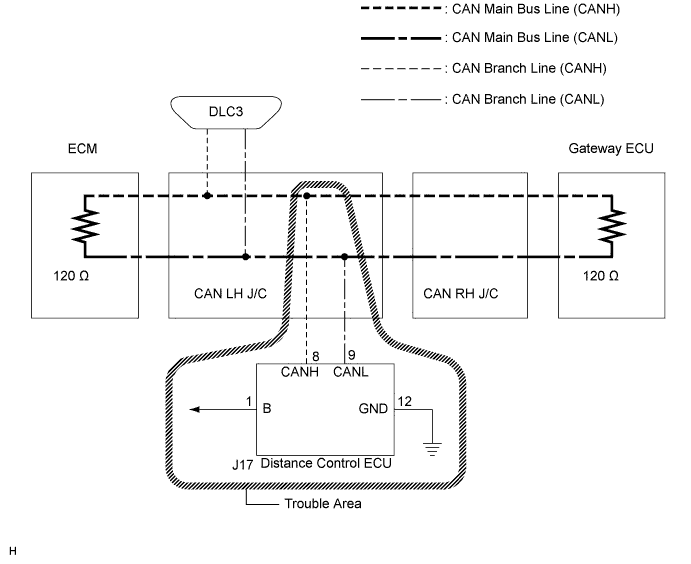

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Distance Control Ecu Communication Stop Mode


INSPECTION PROCEDURE

1.CHECK CAN BUS LINE FOR OPEN (DISTANCE CONTROL ECU BRANCH LINE)

  1. Turn the engine switch off.

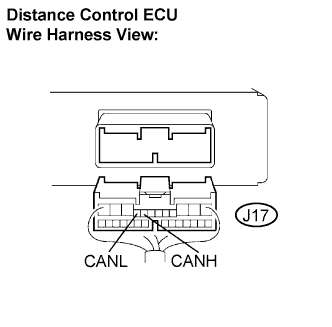

  1. Disconnect the distance control ECU connector (J17).



    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Distance Control Ecu Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    J17-8 (CANH) - J17-9 (CANL)
    		Engine switch off
    		54 to 69 Ω


NG
REPAIR OR REPLACE DISTANCE CONTROL ECU BRANCH LINE OR CONNECTOR (CAN-H, CAN-L)
OK


2.CHECK WIRE HARNESS (+B, GND)


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Distance Control Ecu Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    J17-12 (GND) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Value
    J17-1 (+B) - Body ground
    		Engine switch on (IG)
    		10 to 14 V


OK
REPLACE DISTANCE CONTROL ECU
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
