VEHICLE STABILITY CONTROL SYSTEM (w/o VDIM) - TS and CG Terminal Circuit


DESCRIPTION

In the Test Mode (signal check), a malfunction of the speed sensor that cannot be detected when the vehicle is stopped is detected while driving.
Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the engine switch from off to on (IG).

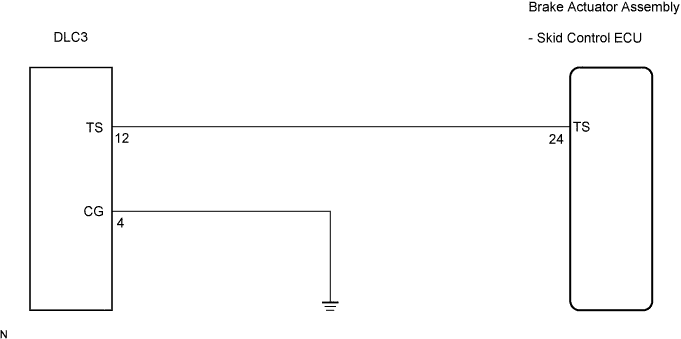

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Vehicle Stability Control System (W/O Vdim) Ts And Cg Terminal Circuit


INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration (Click here).

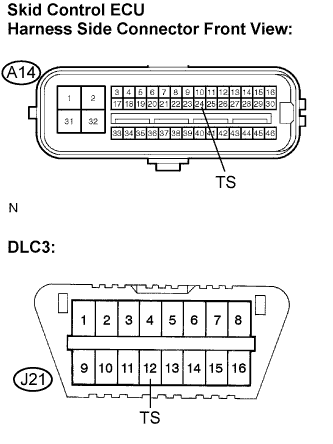

1.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TS of DLC3)


    Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Vehicle Stability Control System (W/O Vdim) Ts And Cg Terminal Circuit

  1. Disconnect the skid control ECU connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    A14-24 (TS) - J21-12 (TS)
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


2.CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)


    Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Vehicle Stability Control System (W/O Vdim) Ts And Cg Terminal Circuit

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    J21-4 (CG) - Body ground
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.CHECK HARNESS AND CONNECTOR (TS of DLC3 - BODY GROUND)


    Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Vehicle Stability Control System (W/O Vdim) Ts And Cg Terminal Circuit

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition

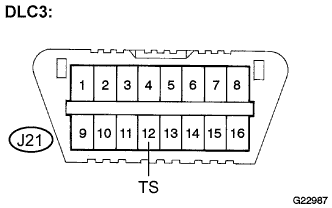

    J21-12 (TS) - Body ground
    		Always
    		10 kΩ or higher
    HINT:
    If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (Click here).


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE BRAKE ACTUATOR ASSEMBLY
