DTC C1251/51 Open in Pump Motor Circuit


DESCRIPTION


DTC No.
DTC Detection Condition
Trouble Area
C1251/51
  1. Actuator pump motor does not operate properly.
  2. Open in actuator pump motor circuit continues for at least 2 seconds.
  1. Brake actuator assembly (GND circuit)
  2. Brake actuator assembly (Motor circuit)
  3. Skid control ECU

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).
Dtc
  C1251/51  Open In Pump Motor Circuit


INSPECTION PROCEDURE

NOTICE:
When replacing the skid control ECU, perform zero point calibration and store system information (Click here).
HINT:
When C0273/13, C0274/14 or C1361/91 is output together with C1251/51, inspect and repair the trouble areas indicated by C0273/13, C0274/14 or C1361/91 first.
1.PERFORM ACTIVE TEST BY INTELLIGENT TESTER (ABS MOTOR RELAY)
  1. Connect the intelligent tester to the DLC3.

  1. Start the engine.

  1. Select the Active Test mode on the intelligent tester.

  1. Check the operating sound of the ABS motor relay and motor when operating the motor relay with the intelligent tester.

    ABS / VSC:
    Item (Display)
    Vehicle Condition / Test Details
    Diagnostic Note
    Motor Relay
    Turns ABS motor relay ON / OFF
    Operating sound of relay (clicking sound) and motor can be heard
    OK:
    The operating sound of the ABS motor relay and motor can be heard.


OK
Go to step 3
NG


2.INSPECT BRAKE ACTUATOR ASSEMBLY (GND TERMINAL)


    Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).
Dtc
  C1251/51  Open In Pump Motor Circuit
  1. Turn the engine switch off.

  1. Disconnect the brake actuator connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    Condition
    Specified Condition

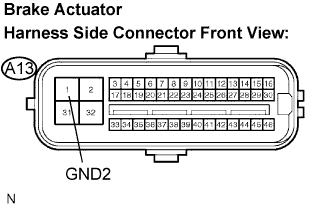

    A13-1 (GND2) - Body ground
    Always
    Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)
OK


3.RECONFIRM DTC
  1. Reconnect the brake actuator connector.

  1. Clear the DTC (Click here).

  1. Start the engine.

  1. Drive the vehicle at the speed of 4.3 mph (7 km/h) or more.

  1. Check if the same DTC is recorded (Click here).

    Result:

    Condition
    Proceed to
    DTC (C1251/51) is not output
    A
    DTC (C1251/51) is output
    B
    HINT:
    1. If a speed signal of 4 mph (6 km/h) or more is input to the skid control ECU with the engine switch on (IG) and the stop light switch off, the ECU performs self diagnosis of the motor and solenoid circuits.
    2. If a normal system code is output (trouble code is not output), slightly jiggle the connectors, wire harness, and fuses of the brake actuator assembly. Make sure that no DTCs are output.
    3. If any DTCs are output while jiggling a connector or wire harness of the brake actuator assembly, inspect and repair the connector or wire harness.


B
REPLACE SKID CONTROL ECU
A

USE SIMULATION METHOD TO CHECK
