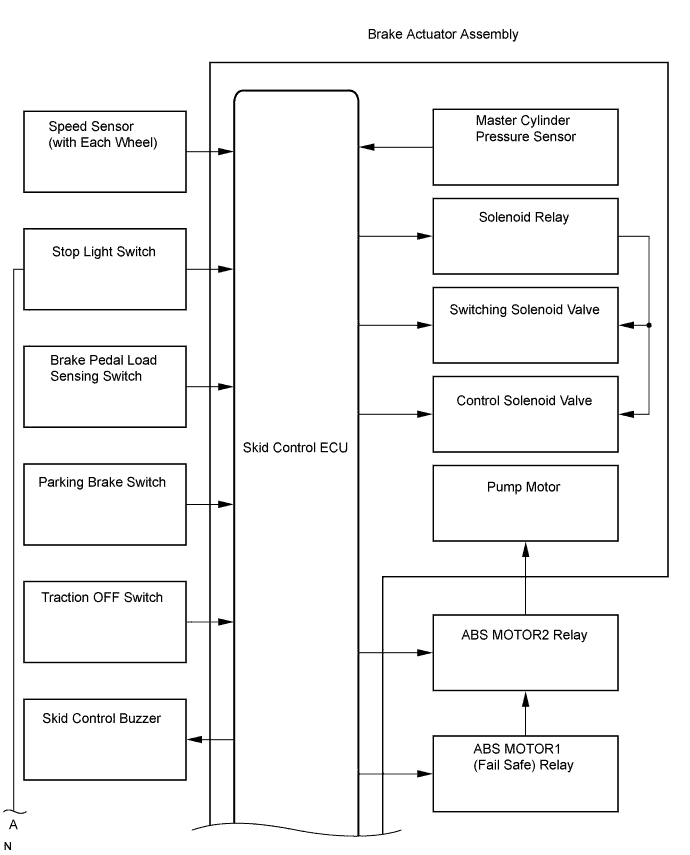

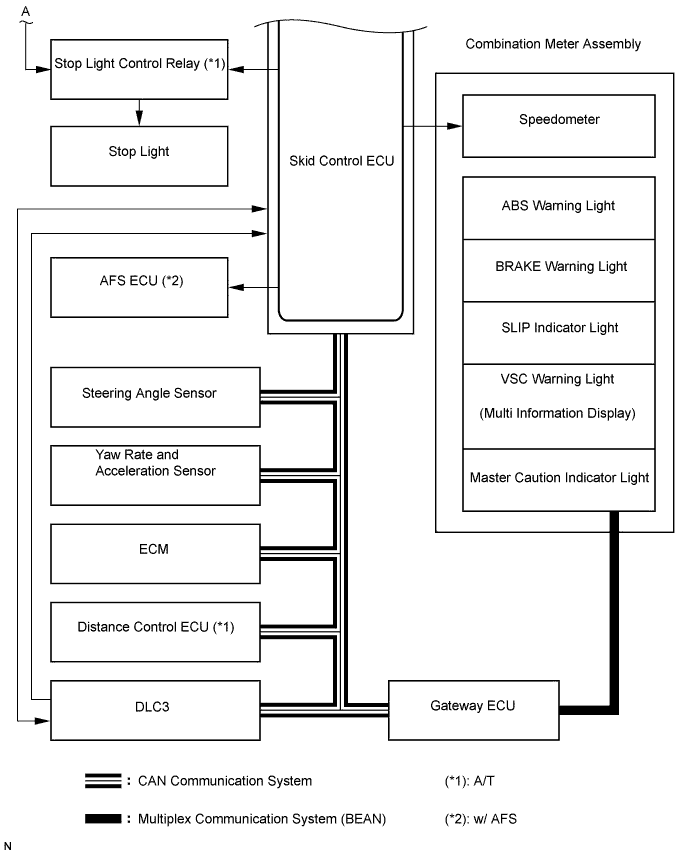

Vehicle Stability Control System (W/O Vdim) -- System Diagram



Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Vehicle Stability Control System (W/O Vdim)  System Diagram


Lexus Is250, Is220D. Gse20 Ale20.Brake Control.Vehicle Stability Control System (W/ Vdim).Vehicle Stability Control System (W/O Vdim)  System Diagram


Transmission ECU (transmitter)
Receiving ECU
Signals
Communication method
ECM
Skid control ECU
  1. Shift position signal
  2. Throttle position signal
  3. Engine revolution signal
  4. Intake air temperature signal
  5. Engine torque request signal
  6. HAC prohibit request signal
  7. Accelerator pedal position signal
CAN communication system
Skid Control ECU
Yaw rate and acceleration sensor
Yaw rate and acceleration request signal
CAN communication system
Skid Control ECU
Steering angle sensor
Steering angle sensor request signal
CAN communication system
Skid Control ECU
ECM
  1. Wheel speed signal
  2. VSC data signal
CAN communication system
Skid Control ECU
Gateway ECU
  1. ABS warning light ON signal
  2. BRAKE warning light ON signal
  3. VSC warning (multi information display and master caution indicator light) light ON signal
  4. SLIP indicator light ON signal
  5. Wheel speed signal
CAN communication system
Distance control ECU
Skid control ECU
Brake control request signal
CAN communication system
