Vvt Sensor -- Installation |

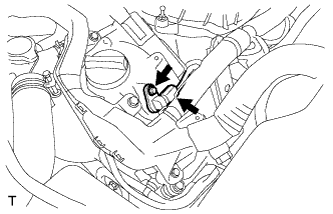

| 1. INSTALL VVT SENSOR (for Exhaust Side of Bank 2) |
Install the sensor with the bolt.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
 |
Connect the sensor connector.

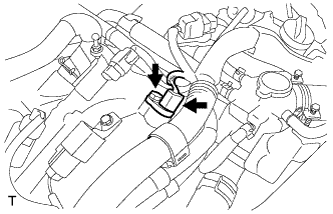

| 2. INSTALL VVT SENSOR (for Intake Side of Bank 2) |
Install the sensor with the bolt.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
 |
Connect the sensor connector.

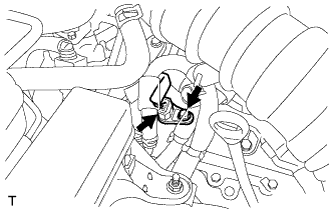

| 3. INSTALL VVT SENSOR (for Exhaust Side of Bank 1) |
Install the sensor with the bolt.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
 |
Connect the sensor connector.

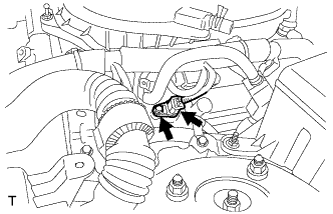

| 4. INSTALL VVT SENSOR (for Intake Side of Bank 1) |
Install the sensor with the bolt.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
 |
Connect the sensor connector.
| 5. INSTALL V-BANK COVER SUB-ASSEMBLY |
Engage the 2 clips on the front of the cover, and then engage the clip on the rear to install the V-bank cover.
- NOTICE:
- Be sure to engage the clips securely.
- Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
 |
