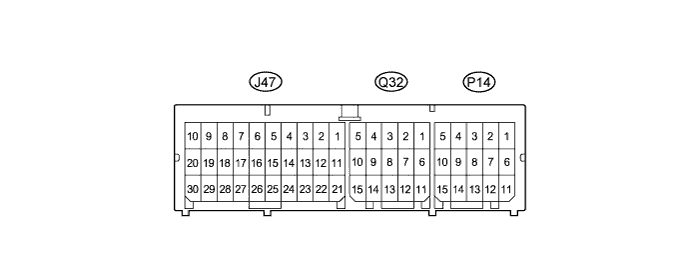

Terminal No.
| Terminal Symbol
| Destination
|
J47-1
| P2+
| Front passenger airbag assembly (Front passenger side squib 2nd step)
|
J47-2
| P2-
| Front passenger airbag assembly (Front passenger side squib 2nd step)
|
J47-3
| P-
| Front passenger airbag assembly (Front passenger side squib)
|
J47-4
| P+
| Front passenger airbag assembly (Front passenger side squib)
|
J47-5
| D+
| Steering pad (Driver side squib)
|
J47-6
| D-
| Steering pad (Driver side squib)
|
J47-7
| D2-
| Steering pad (Driver side squib 2nd step)
|
J47-8
| D2+
| Steering pad (Driver side squib 2nd step)
|
J47-9
| DK+
| Driver side knee airbag assembly (Driver side knee airbag squib)
|
J47-10
| DK-
| Driver side knee airbag assembly (Driver side knee airbag squib)
|
J47-11
| MSW+
| Airbag cut off switch cylinder
|
J47-12
| MSW-
| Airbag cut off switch cylinder
|
J47-13
| CANH
| CAN Communication line
|
J47-16
| SIL
| DLC3
|
J47-17
| P-AB
| Clock assembly (Passenger airbag ON/OFF Indicator)
|
J47-18
| GSW
| Main body ECU
|
J47-19
| PK+
| Front passenger side knee airbag assembly (Front passenger side knee airbag squib)
|
J47-20
| PK-
| Front passenger side knee airbag assembly (Front passenger side knee airbag squib)
|
J47-21
| IG2
| IGN fuse
|
J47-22
| CANL
| CAN Communication line
|
J47-23
| PAON
| Clock assembly (Passenger airbag ON/OFF Indicator)
|
J47-25
| E1
| Ground
|
J47-26
| E2
| Ground
|
J47-27
| -SR
| Front airbag sensor RH
|
J47-28
| -SL
| Front airbag sensor LH
|
J47-29
| +SR
| Front airbag sensor RH
|
J47-30
| +SL
| Front airbag sensor LH
|
P14-1
| PPR-
| Rear seat outer belt assembly (Rear passenger side rear pretensioner squib)
|
P14-2
| PPR+
| Rear seat outer belt assembly (Rear passenger side rear pretensioner squib)
|
P14-3
| EP
| Passenger side shield ground
|
P14-4
| PP+
| Front seat outer belt assembly (Front passenger side front pretensioner squib)
|
P14-5
| PP-
| Front seat outer belt assembly (Front passenger side front pretensioner squib)
|
P14-6
| SFP-
| Front seat side airbag assembly (Front passenger side - side squib)
|
P14-7
| SFP+
| Front seat side airbag assembly (Front passenger side - side squib)
|
P14-8
| BCP+
| Front passenger side rear airbag sensor
|
P14-9
| ICP+
| Curtain shield airbag assembly (Front passenger side curtain shield squib)
|
P14-10
| ICP-
| Curtain shield airbag assembly (Front passenger side curtain shield squib)
|
P14-11
| BCP-
| Front passenger side rear airbag sensor
|
Q32-1
| PD-
| Front seat outer belt assembly (Driver side front pretensioner squib)
|
Q32-2
| PD+
| Front seat outer belt assembly (Driver side front pretensioner squib LH)
|
Q32-3
| ED
| Driver side shield ground
|
Q32-4
| PDR+
| Rear seat outer belt assembly (Driver side rear pretensioner squib)
|
Q32-5
| PDR-
| Rear seat outer belt assembly (Driver side rear pretensioner squib)
|
Q32-6
| ICD-
| Curtain shield airbag assembly (Driver side curtain shield squib)
|
Q32-7
| ICD+
| Curtain shield airbag assembly (Driver side curtain shield squib)
|
Q32-8
| BCD+
| Driver side rear airbag sensor
|
Q32-9
| SFD+
| Front seat side airbag assembly (Driver side - side squib)
|
Q32-10
| SFD-
| Front seat side airbag assembly (Driver side - side squib)
|
Q32-11
| DBE+
| Front seat inner belt assembly (Driver side seat belt buckle switch)
|
Q32-12
| DBE-
| Front seat inner belt assembly (Driver side seat belt buckle switch)
|
Q32-13
| DSP-
| Seat position airbag sensor
|
Q32-14
| DSP+
| Seat position airbag sensor
|
Q32-15
| BCD-
| Driver side rear airbag sensor
|
