Tire And Wheel System Inspection

Check the tires for wear and proper inflation pressure.

Standard:

Tire Size	Specified Value kPa (kgf*cm2,psi)
	More than 210 km/h (132 mph)		From 160 km/h (100 mph) to 210 km/h 132 mph)		160 km/h (100 mph) or less
	Front	Rear	Front	Rear	Front	Rear
205/55R16 89W	310 (3.1, 45)	330 (3.3, 48)	290 (3.9, 42)	310 (3.1, 45	240 (2.4, 35)	260 (2.6, 38)
225/45R17 90W*1	300 (3.0, 44)	-	280 (2.8, 41)	-	240 (2.4, 35)	-
245/45R17 95W*2	-	320 (3.2, 46)	-	300 (3.0, 44)	-	260 (2.6, 38)
225/40R18 88Y*1	320 (3.2, 46)	-	300 (3.0, 44)	-	240 (2.4, 35)	-
255/40R18 95Y*2	-	340 (3.4, 49)	-	320 (3.2, 46)	-	260 (2.6, 38)

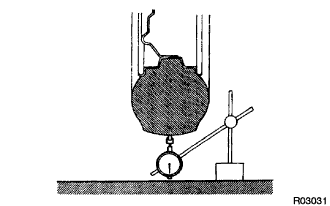

Using a dial indicator, check the runout of the tires.

Tire runout:

1.0 mm (0.039 in.) or less

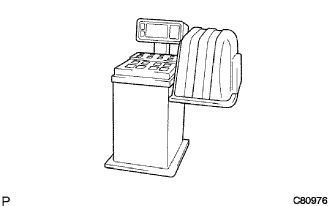

Check and adjust the off-the-car balance.

If necessary, check and adjust the on-the-car balance.

Imbalance after adjustment:

8.0 g (0.018 lb.) or less.

HINT:

In the case of 16-inch wheels, balance weight should be installed by tapping.

NOTICE:

1. Remove dirt, oil and water from the surface where the balance weight is to be adhered with a cleaning detergent.

2. Do not touch the sticking surface of the tape.

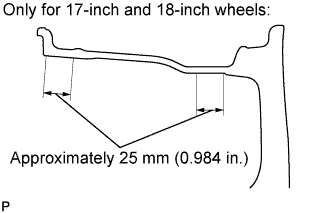

3. Adhere the sticking type balance weight to the flat position shown in the illustration.

4. Push the balance weight securely with a finger to adhere it to the position.

5. Do not reuse a balance weight.

6. Use the LEXUS genuine tape weight.
