DTC B2007 Open in Seat Belt Motor LH Circuit


DESCRIPTION

The seat belt control ECU receives information from the distance control ECU using CAN communication and tightens the seat belt by operating the motor in the front seat outer belt assembly LH.
CAUTION:
The pretensioner is built into the front seat outer belt assembly LH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may deploy the pretensioner.

DTC No.
DTC Detection Condition
Trouble Area
B2007
Open in seat belt motor LH circuit continues for 1 second or more
  1. Front seat outer assembly LH
  2. Wire harness (seat belt control ECU - front seat outer belt assembly LH)
  3. Seat belt control ECU

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2007 Open In Seat Belt Motor Lh Circuit


INSPECTION PROCEDURE

NOTICE:
When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed (Click here).
1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY LH
Lexus Is250, Is220D. Gse20 Ale20.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2007 Open In Seat Belt Motor Lh Circuit

  1. Disconnect the connector O13 of the front seat outer belt assembly LH.

  1. Measure the resistance according to the value(s) in the table below.

Standard resistance:
Tester Connection
Condition
Specified Condition
O13-1 - O13-2
Always
Below 1 MΩ


NG
REPLACE FRONT SEAT OUTER BELT ASSEMBLY LH
OK


2.CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY LH - SEAT BELT CONTROL ECU)


    Lexus Is250, Is220D. Gse20 Ale20.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2007 Open In Seat Belt Motor Lh Circuit

  1. Disconnect the negative (-) battery terminal.

  1. Disconnect the connector O38 of the seat belt control ECU.

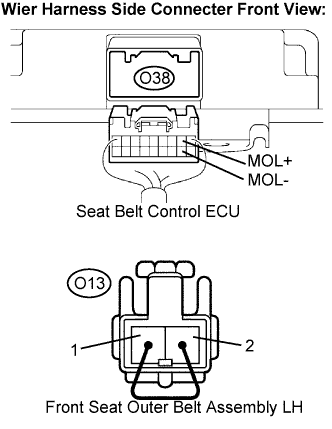

  1. Using a service wire, connect O13-1 and O13-2 of the connector on the front seat outer belt assembly LH side.

    NOTICE:
    Do not forcibly insert the service wire into the terminals of the connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    O38-2 (MOL+) - O38-11 (MOL-)
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE SEAT BELT CONTROL ECU
