DTC B2002 Open in Seat Belt Motor RH Circuit


DESCRIPTION

The seat belt control ECU receives information from the distance control ECU using CAN communication and tightens the seat by operating the motor in the front seat outer belt assembly RH.
CAUTION:
The pretensioner is built into the front seat outer belt assembly RH. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may deploy the pretensioner.

DTC No.
DTC Detecting Condition
Trouble Area
B2002
Open in the seat belt motor RH circuit continues for 1 second or more
  1. Front seat outer assembly RH
  2. Wire harness (seat belt control ECU - front seat outer belt assembly RH)
  3. Seat belt control ECU

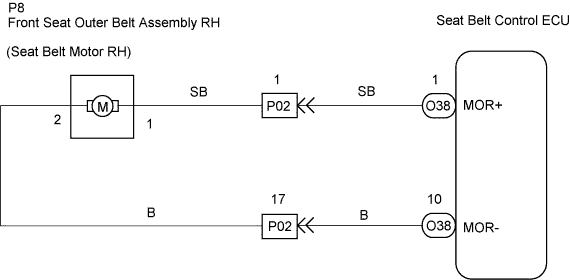

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2002 Open In Seat Belt Motor Rh Circuit


INSPECTION PROCEDURE

NOTICE:
When the seat belt control ECU is replaced with a new one, INITIALIZATION must be performed (Click here).
1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY RH


    Lexus Is250, Is220D. Gse20 Ale20.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2002 Open In Seat Belt Motor Rh Circuit

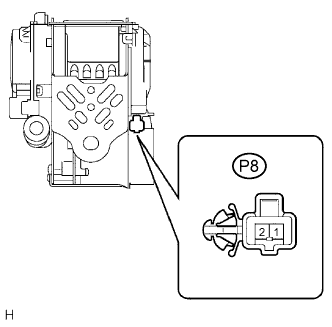

  1. Disconnect the P8 connector of the front seat outer belt assembly RH.

  1. Measure the resistance according to the value(s) in the table below.

Standard resistance:
Tester Connection
Condition
Specified Condition
P8-1 - P8-2
Always
Below 1 MΩ


NG
REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH
OK


2.CHECK HARNESS AND CONNECTOR (FRONT SEAT OUTER BELT ASSEMBLY RH - SEAT BELT CONTROL ECU)


    Lexus Is250, Is220D. Gse20 Ale20.Pre-Crash Safety.Pre-Crash Safety System. Dtc B2002 Open In Seat Belt Motor Rh Circuit

  1. Disconnect the negative (-) battery terminal.

  1. Disconnect the O38 connector of the seat belt control ECU.

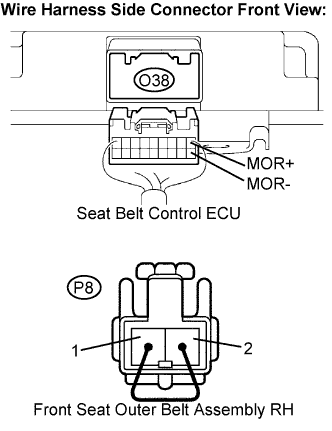

  1. Using a service wire, connect P8-1 and P8-2 of the connector on the front seat outer belt assembly RH side.

    NOTICE:
    Do not forcibly insert the service wire into the terminals of a connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    O38-1 (MOR+) - O38-10 (MOR-)
    		Always
    		Below 1 Ω


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE SEAT BELT CONTROL ECU
