DTC B1266 Short to B+ in Instrument Panel System Communication Bus Malfunction |
DTC B1267 Short to GND in Instrument Panel System Communication Bus Malfunction |
DESCRIPTION
When a +B short circuit or body ground short circuit is detected on the instrument panel system communication bus (BEAN), the instrument panel system communication bus (BEAN) is disabled and a DTC code is output.DTC No.
| DTC Detection Condition
| Trouble Area
|
B1266
| Instrument panel system communication circuit and +B battery system short
| - Gateway ECU
- Air conditioning amplifier (A/C ECU)
- AFS ECU
- Combination meter ECU
- Wire harness
|
B1267
| Instrument panel system communication circuit and body ground short
| - Gateway ECU
- Air conditioning amplifier (A/C ECU)
- AFS ECU
- Combination meter ECU
- Wire harness
|
WIRING DIAGRAM
INSPECTION PROCEDURE
1.CHECK DIAGNOSTIC TROUBLE CODE (A ECU) |

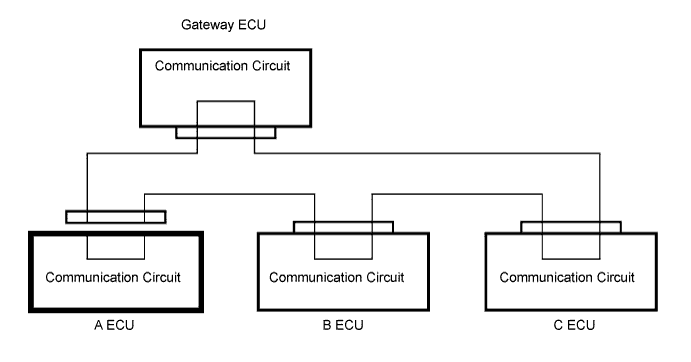

Disconnect the A ECU connector and check for DTCs B1266 and B1267.
- OK:
- Neither DTC B1266 nor DTC B1267 is output.
- NOTICE:
- Reconnect the connector before starting the next check.
- HINT:
- The A ECU in the instrument panel system bus represents the air conditioning amplifier.
- If the result is as specified, the disconnected A ECU (air conditioning amplifier) is malfunctioning.
2.CHECK DIAGNOSTIC TROUBLE CODE (B ECU) |

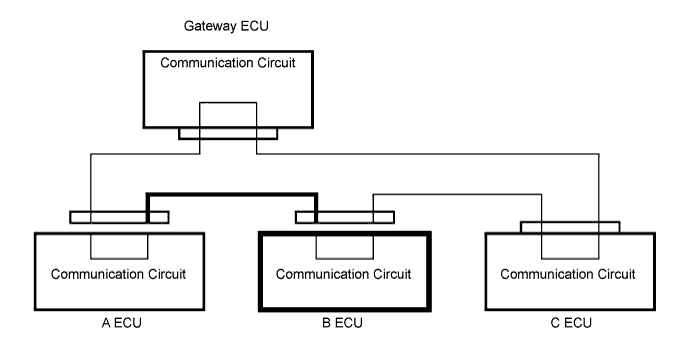

Disconnect the A ECU and B ECU connectors and check for DTCs B1266 and B1267.
- OK:
- Neither DTC B1266 nor DTC B1267 is output.
- NOTICE:
- Disconnect the connectors one by one. Reconnect the connectors before starting the next check.
- HINT:
- The B ECU in the instrument panel system bus represents the AFS ECU.
- If the result is as specified, the disconnected B ECU (AFS ECU) or the wire harness between the A ECU and B ECU is malfunctioning.
- After the DTC is cleared, proceed to the next step.
3.CHECK WIRE HARNESS BETWEEN A ECU AND B ECU |

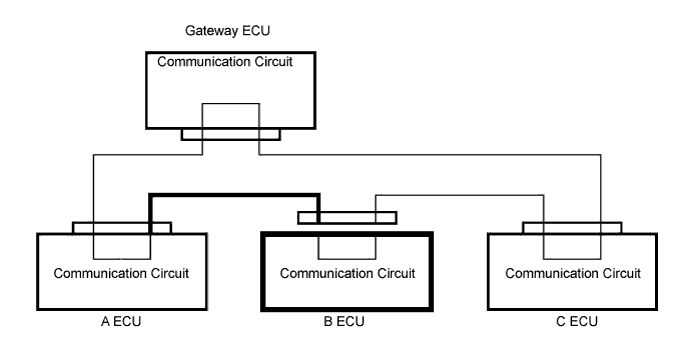

Disconnect the B ECU connector and check for DTCs B1266 and B1267.
- OK:
- Neither DTC B1266 nor DTC B1267 is output.
- NOTICE:
- Reconnect the connector before starting the next check.
- HINT:
- If the result is as specified, the wire harness between the A ECU and B ECU is functioning normally but the disconnected B ECU is malfunctioning.
| REPAIR OR REPLACE WIRE HARNESS BETWEEN A ECU AND B ECU |
|
|
4.CHECK DIAGNOSTIC TROUBLE CODE (C ECU) |

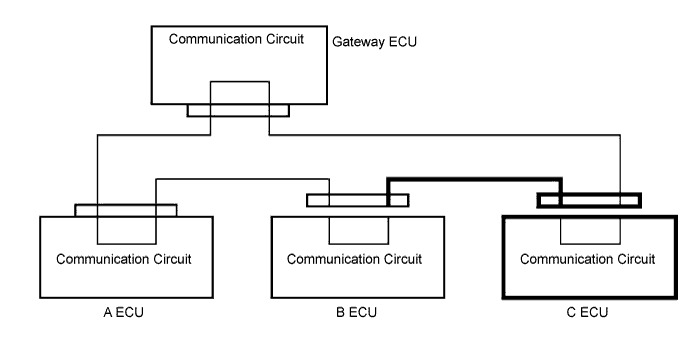

Disconnect the B ECU and C ECU connectors and check for DTCs B1266 and B1267.
- OK:
- Neither DTC B1266 nor DTC B1267 is output.
- NOTICE:
- Disconnect the connectors one by one. Reconnect the connectors before starting the next check.
- HINT:
- The C ECU in the instrument panel system bus represents the combination meter ECU.
- If the result is as specified, the disconnected C ECU (combination meter ECU) or the wire harness between the B ECU and C ECU is malfunctioning.
5.CHECK WIRE HARNESS BETWEEN B ECU AND C ECU |

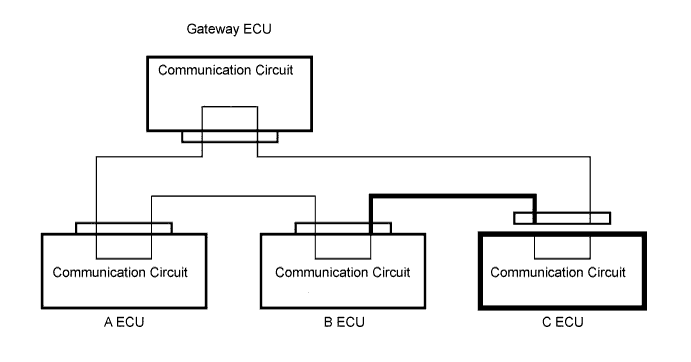

Disconnect the C ECU connector and check for DTCs B1266 and B1267.
- OK:
- Neither DTC B1266 nor DTC B1267 is output.
- NOTICE:
- Reconnect the connector before starting the next check.
- HINT:
- If the result is as specified, the wire harness between the B ECU and C ECU is functioning normally but the disconnected C ECU is malfunctioning.
| REPAIR OR REPLACE WIRE HARNESS BETWEEN B ECU AND C ECU |
|
|
6.CHECK WIRE HARNESS BETWEEN GATEWAY ECU AND A ECU OR C ECU |

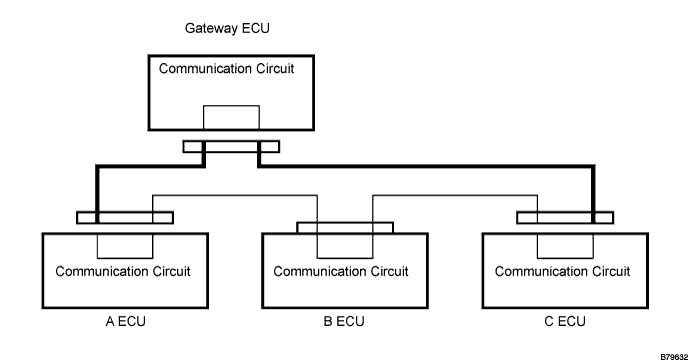

Check for a short-circuit in B+ or body ground.
Disconnect the A ECU, C ECU and gateway ECU connectors.
Measure the resistance and voltage of the wire harness side connectors.
- Standard voltage:
Tester Connection
| Specified Condition
|
A ECU connector/gateway ECU connector - Body ground
| Below 1 V
|
C ECU connector/gateway ECU connector - Body ground
| Below 1 V
|
- Standard resistance:
Tester Connection
| Specified Condition
|
A ECU connector/gateway ECU connector - Body ground
| 10 kΩ or higher
|
C ECU connector/gateway ECU connector - Body ground
| 10 kΩ or higher
|
- HINT:
- The A ECU in the instrument panel system bus represents the air conditioning amplifier.
- The C ECU in the instrument panel system bus represents the combination meter ECU.
| REPAIR OR REPLACE WIRE HARNESS BETWEEN GATEWAY ECU AND A ECU OR C ECU |
|
|
