Suspension & Axle. Lexus Is250, Is220D. Gse20 Ale20
Suspension. Lexus Is250, Is220D. Gse20 Ale20
Rear No. 1 Suspension Arm -- Removal |
| 1. REMOVE REAR WHEEL |
| 2. REMOVE NO. 2 DIFFERENTIAL SUPPORT PROTECTOR |
Remove the 2 nuts and the No. 2 differential support protector.
 |
| 3. REMOVE REAR FLOOR SIDE MEMBER COVER |

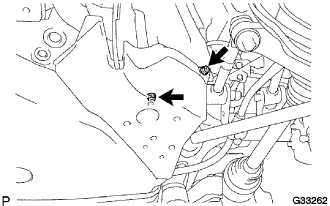

Remove the 2 screws and the rear floor side member cover.
 |
| 4. REMOVE REAR NO. 1 SUSPENSION ARM |

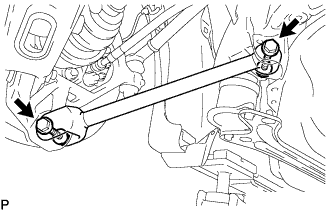

Remove the 2 bolts, 2 nuts, and rear No. 1 suspension arm.
- NOTICE:
- Turn the bolt while holding the nut.
 |
