Front Stabilizer Bar -- Installation |
| 1. INSTALL FRONT STABILIZER BAR |
Install the front stabilizer bar to the vehicle.
- NOTICE:

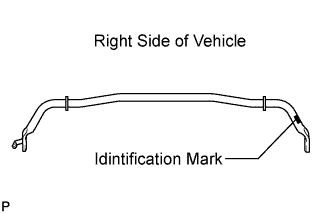

- The identification mark must be on the right side of the vehicle when installing the front stabilizer bar.
 |
| 2. INSTALL FRONT NO. 1 STABILIZER BAR BUSHING |

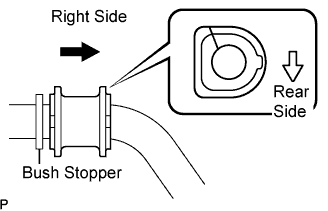

Install the 2 front No. 1 stabilizer bar bushings as shown in the illustration.
- NOTICE:
- Be sure to install the front No. 1 stabilizer bar bushings so that the cutouts face the front of the vehicle.
 |
| 3. INSTALL FRONT NO. 1 STABILIZER BRACKET LH |

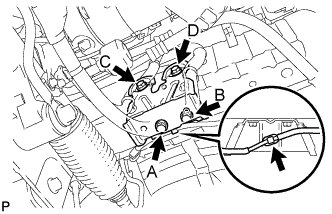

Press the front No. 1 stabilizer bracket LH against the frame toward the outside of the vehicle and temporarily tighten bolt A.
 |
Install bolt B, fully tighten bolt A, and then install bolts C and D.
Install the skid control sensor wire clamp to the front No. 1 stabilizer bracket LH.
- Torque:
- 49 N*m{500 kgf*cm, 36 ft.*lbf}
| 4. INSTALL FRONT NO. 1 STABILIZER BRACKET RH |
- HINT:
- Install the RH side following the same procedures as for the LH side.
| 5. INSTALL FRONT NO. 2 STABILIZER BRACKET LH |

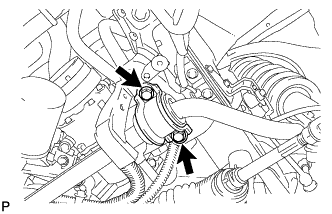

Install the front No. 2 stabilizer bracket LH on the vehicle with the 2 bolts.
- Torque:
- 49 N*m{500 kgf*cm, 36 ft.*lbf}
 |
| 6. INSTALL FRONT NO. 2 STABILIZER BRACKET RH |
- HINT:
- Install the RH side following the same procedure as for the LH side.
| 7. INSTALL FRONT STABILIZER LINK ASSEMBLY LH |

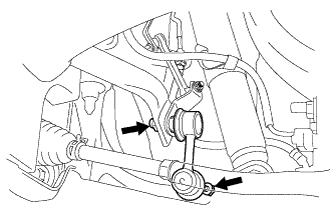

Install the front stabilizer link assembly LH with the 2 nuts.
- Torque:
- 84 N*m{856 kgf*cm, 62 ft.*lbf}
- HINT:
- If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.
 |
| 8. INSTALL FRONT STABILIZER LINK ASSEMBLY RH |
- HINT:
- Install the RH side following the same procedure as for the LH side.
| 9. CONNECT FRONT HEIGHT CONTROL SENSOR LINK ASSEMBLY |
| 10. INSTALL REAR ENGINE UNDER COVER LH |

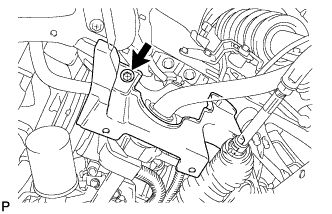

Install the engine under cover LH with the bolt.
 |
| 11. INSTALL REAR ENGINE UNDER COVER RH |
- HINT:
- Install the RH side following the same procedure as for the LH side.
| 12. INSTALL ENGINE UNDER COVER LH |
| 13. INSTALL FRONT WHEEL |
- Torque:
- 103 N*m{1,050 kgf*cm, 72 ft.*lbf}
| 14. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT |
