CAN COMMUNICATION SYSTEM (for RHD) - Power Steering ECU Communication Stop Mode


DESCRIPTION


Detection Item
Symptom
Trouble Area
Power Steering ECU Communication Stop Mode
  1. "EPS" is not displayed on the "Communication Bus Check" screen of the intelligent tester
  2. Applies to "Power Steering ECU Communication Stop Mode" in the "DTC COMBINATION TABLE"
  1. Power source circuit of the power steering ECU
  2. Power steering ECU branch line or connector
  3. Power steering ECU
HINT:
"EPS" refers to the circuit that includes the power steering ECU.

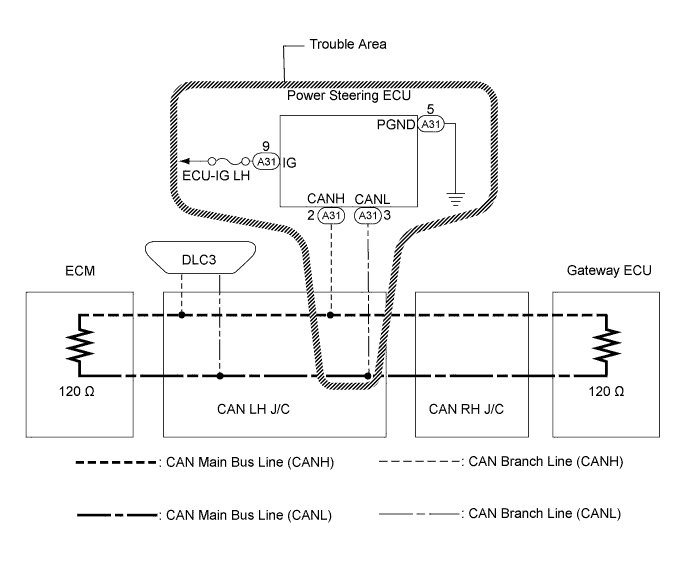

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Rhd) Power Steering Ecu Communication Stop Mode


INSPECTION PROCEDURE

1.CHECK CAN BUS LINE FOR OPEN (POWER STEERING ECU BRANCH LINE)

  1. Turn the engine switch off.

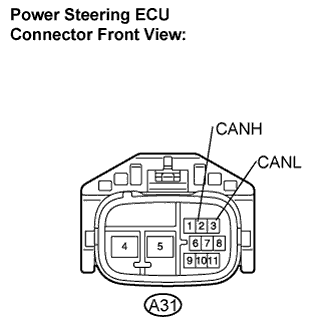

  1. Disconnect the power steering ECU connector (A31).



    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Rhd) Power Steering Ecu Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    A31-2 (CANH) - A31-3 (CANL)
    		Engine switch off
    		54 to 69 Ω


NG
REPAIR OR REPLACE POWER STEERING ECU BRANCH LINE OR CONNECTOR (CANH, CANL)
OK

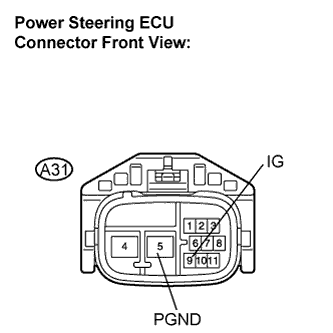

2.CHECK WIRE HARNESS (IG, PGND)


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Rhd) Power Steering Ecu Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    A31-5 (PGND) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Value
    A31-9 (IG) - Body ground
    		Engine switch on (IG)
    		10 to 14 V


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE POWER STEERING ECU
