CAN COMMUNICATION SYSTEM (for LHD) - Steering Angle Sensor Communication Stop Mode


DESCRIPTION


Detection Item
Symptom
Trouble Area
Steering Angle Sensor Communication Stop Mode
  1. "Steering Angle Sensor" is not displayed on the "Communication Bus Check" screen of the intelligent tester.
  2. Applies to "Steering Angle Sensor Communication Stop Mode" in the "DTC COMBINATION TABLE"
  1. Power source circuit of the steering angle sensor
  2. Steering angle sensor branch line or connector
  3. Steering angle sensor
HINT:
"Steering Angle Sensor" refers to the circuit that includes the steering angle sensor.

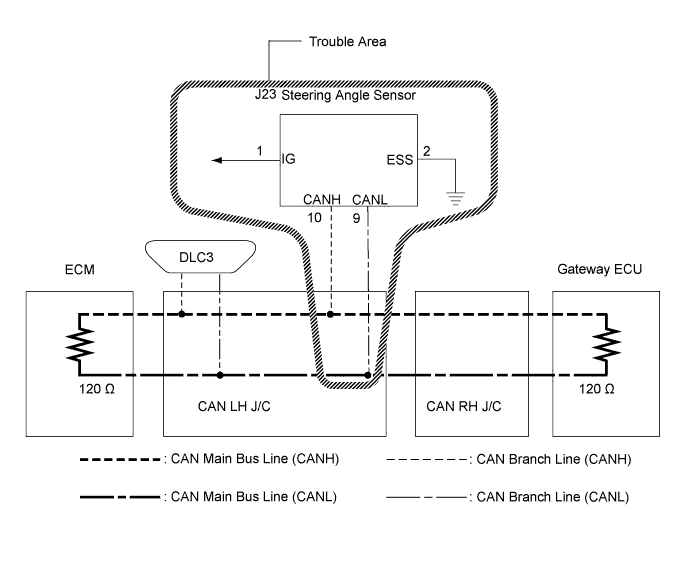

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Steering Angle Sensor Communication Stop Mode


INSPECTION PROCEDURE

1.CHECK CAN BUS LINE FOR OPEN (STEERING ANGLE SENSOR BRANCH LINE)

  1. Turn the engine switch off.

  1. Disconnect the steering angle sensor connector (J23).



    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Steering Angle Sensor Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    J23-10 (CANH) - J23-9 (CANL)
    		Engine switch off
    		54 to 69 Ω


NG
REPAIR OR REPLACE STEERING ANGLE SENSOR BRANCH LINE OR CONNECTOR (CANH, CANL)
OK


2.CHECK WIRE HARNESS (IG, ESS)


    Lexus Is250, Is220D. Gse20 Ale20.Can Communication.Can Communication System (For Lhd).Can Communication System (For Lhd) Steering Angle Sensor Communication Stop Mode

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Value
    J23-2 (ESS) - Body ground
    		Always
    		Below 1 Ω

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Value
    J23-1 (IG) - Body ground
    		Engine switch on (IG)
    		10 to 14 V


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

REPLACE STEERING ANGLE SENSOR
