Communication System. Lexus Is250, Is220D. Gse20 Ale20
Multiplex Communication. Lexus Is250, Is220D. Gse20 Ale20

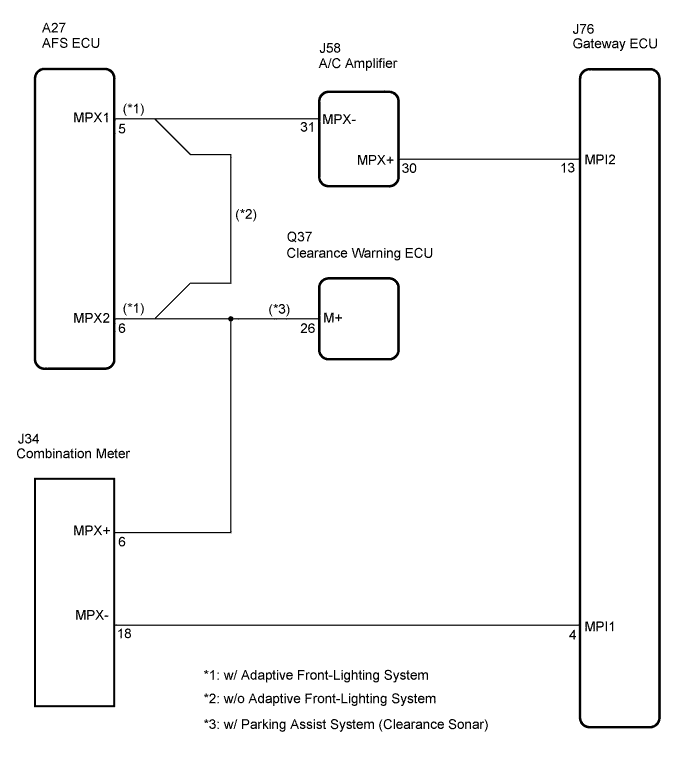

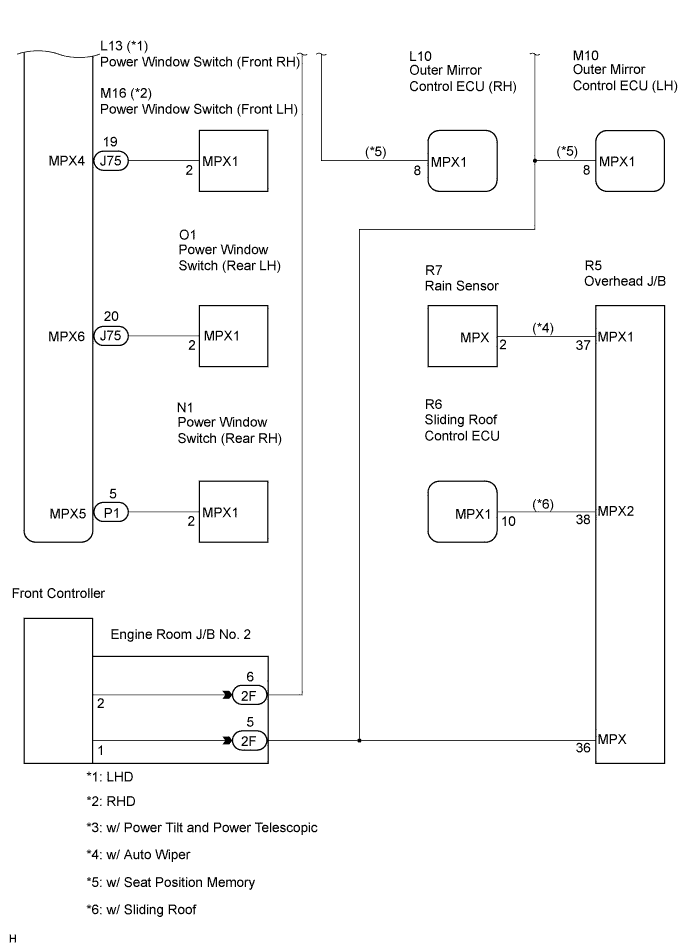

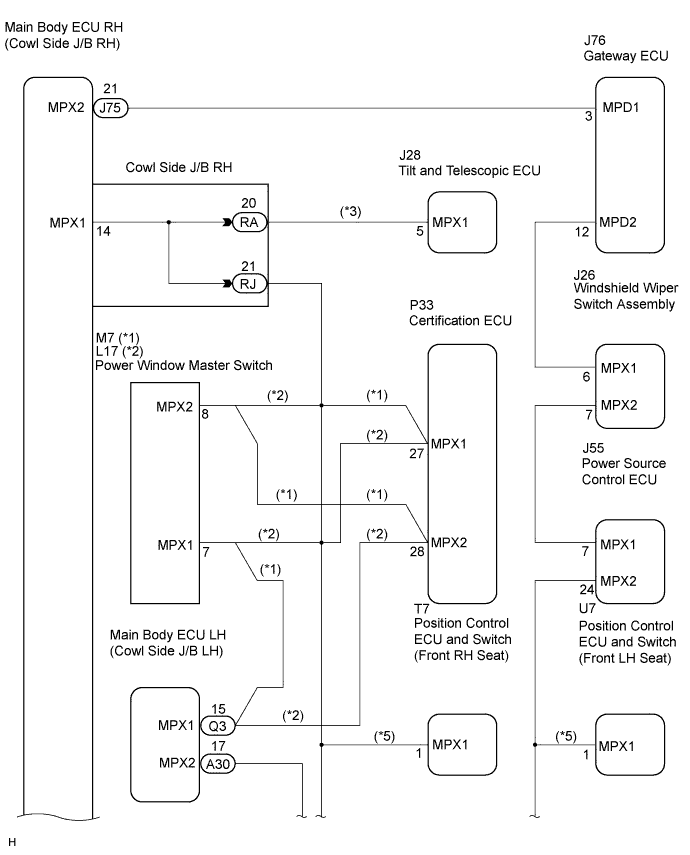

Multiplex Communication System -- System Diagram |
| Item | Details |
| Number of BEAN connected ECUs *1 | 20 |
| Number of CAN connected ECUs *1 | 10 |
| Number of AVC-LAN connected ECUs *1 | 6 |
| Gateway function between BEAN and diagnosis | Gateway ECU |
| Gateway function between BEAN and AVC-LAN | Gateway ECU |
| Gateway function between BEAN and CAN | Gateway ECU |
| ECU in charge of vehicle customization information | Gateway ECU |
| Protocol | CAN, BEAN and AVC-LAN |
- HINT:
- *1: Optional ECUs are also included.
